8-14 Phaser 7400 Color Printer Service Manual

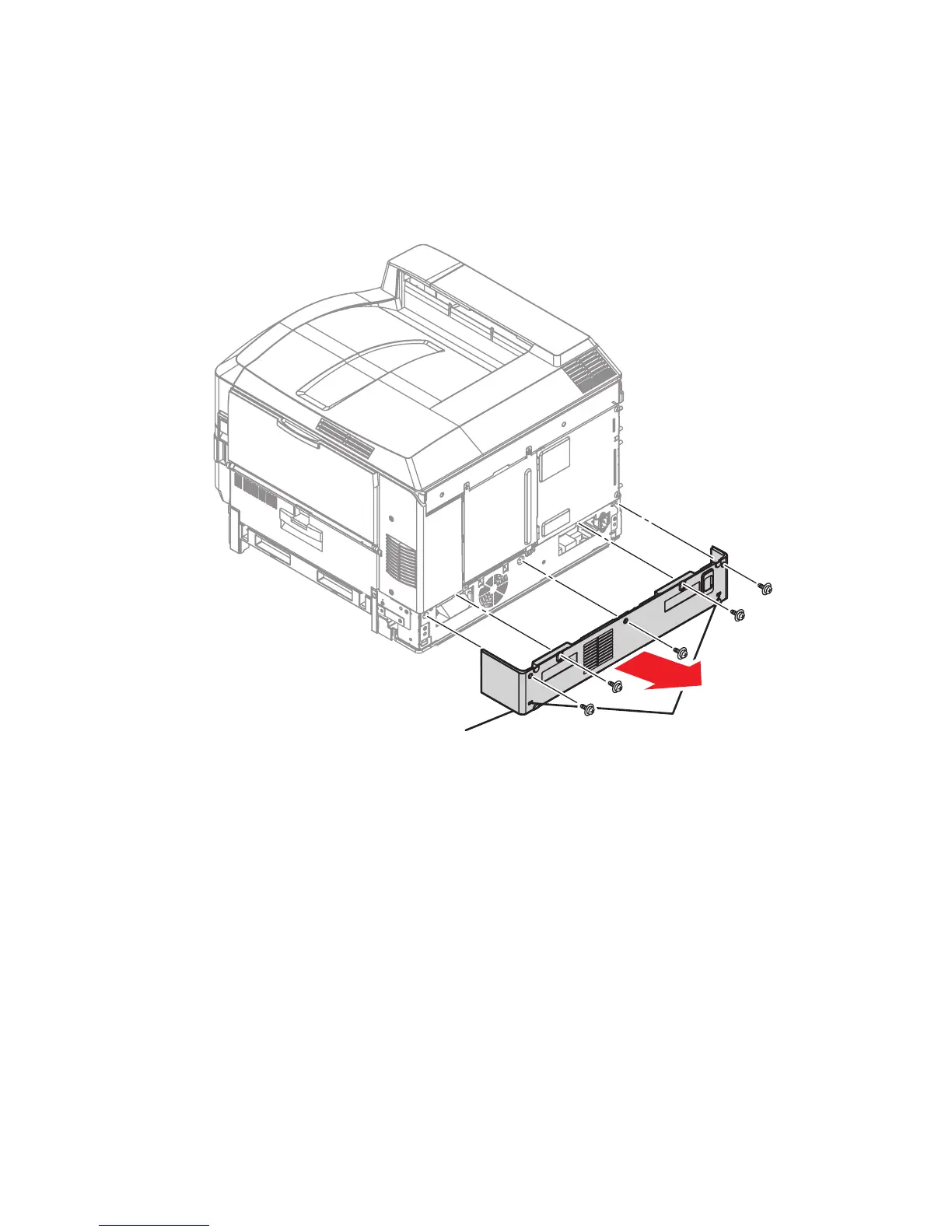

Lower Rear Cover
1. Remove 5 (metal, 10 mm) screws from the Lower Rear Cover.
2. Using a screwdriver, release the 2 tabs located near the bottom of the Lower Rear
Cover.
3. Remove the Lower Rear Cover.
s7400-177
Lower Rear Cover
Tabs
