Service Parts Disassembly 8-27

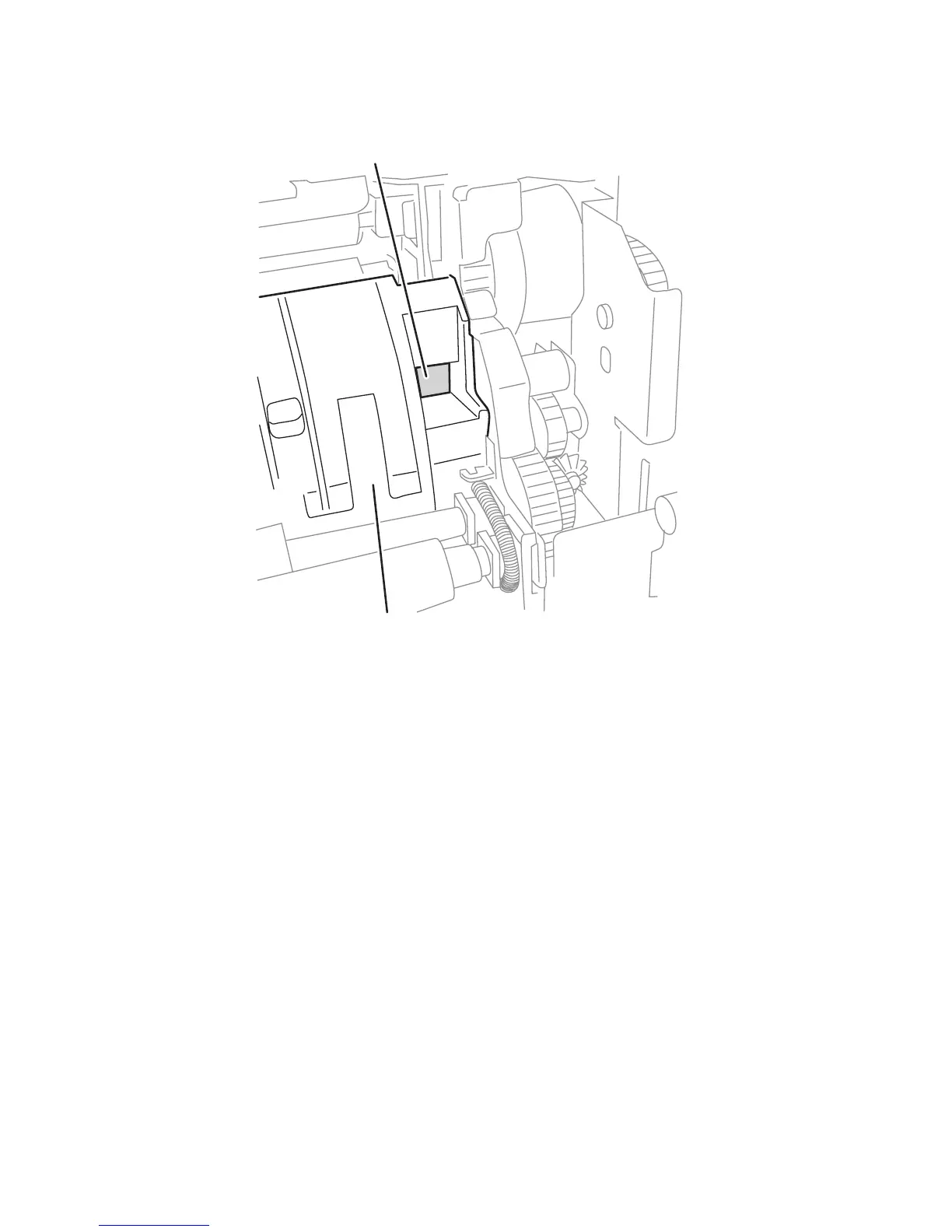

7. Release the wiring from the opening in the Registration Assembly. If the
connector hangs inside the Registration Assembly, tape the connector parallel to
the wiring to facilitate removal.
Replacement Note
When replacing the Tray 1 (MPT) hinges, replace the rear hinge first.
Wiring Pass-Through
s7400-456
Registration Assembly
To Next Page
