Service Parts Disassembly 8-87
6. Open the Basket Assembly to release the manifold from the basket.
7. Release the Waste Toner Motor harness from the clamp.
8. Remove 7 (metal, 6 mm) screws to remove the Waste Toner Auger Assembly.
Replacement Note
Clear any debris from the Duplex Unit cavity before installing the Duplex
Unit.

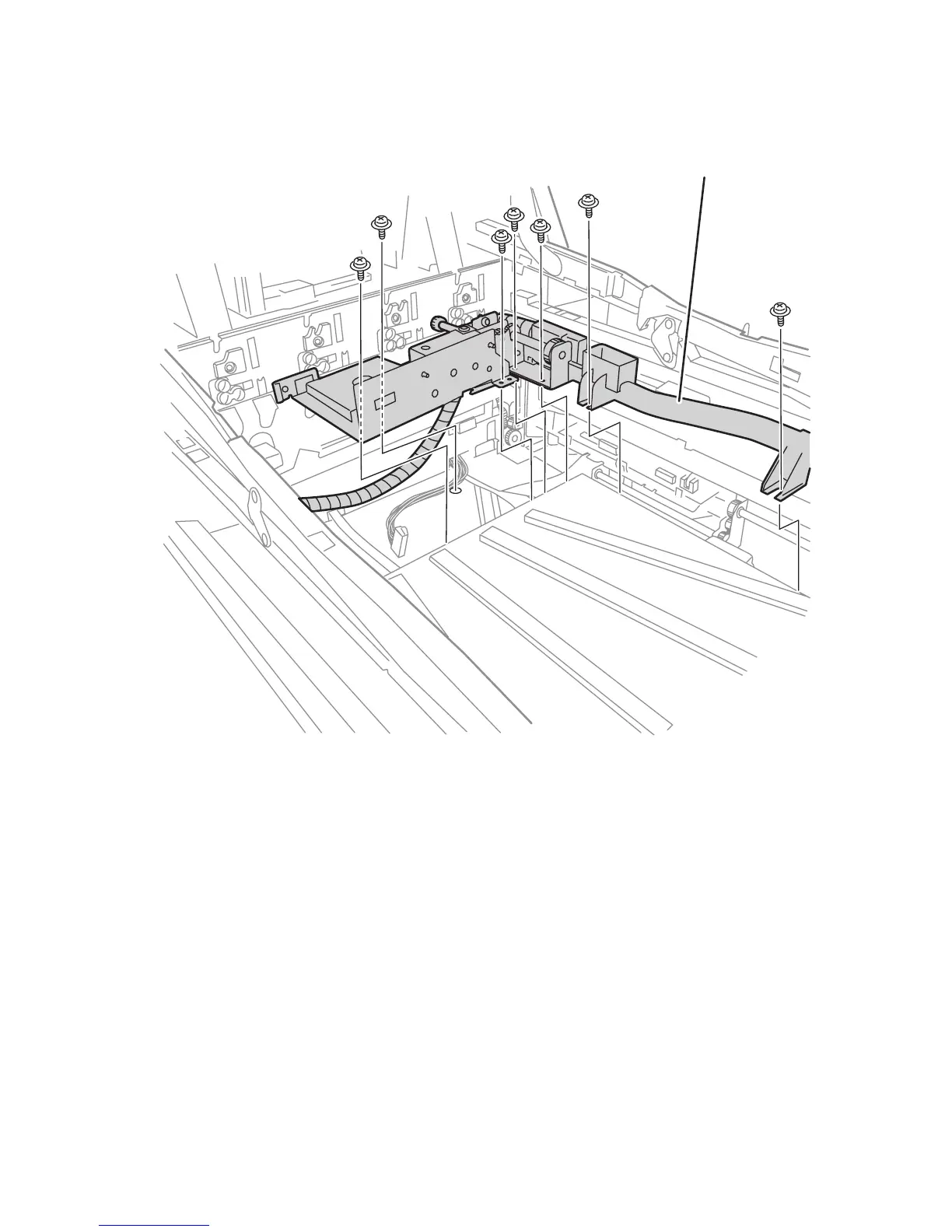

s7400-445
Waste Toner Auger Assembly
To Next Page
