Xerox Phaser 7400 Service Manual

2-36 Phaser 7400 Color Printer Service Manual
■ Duplex Entrance Sensor
Detects the leading edge of the media and signals the Duplex Motor to begin
rotation in the forward direction.
■ Duplex Gate Solenoid
Activates the Duplex Gate directing media to the Duplex Transport Rollers.
■ Duplex Reverse Sensor
Detects media in the lower portion of the Duplex Unit and signals the Duplex
Motor to reverse rotation.
■ Duplex Front and Rear Sensors
Monitor media transport through the upper portion of the Duplex Unit.
■ Duplex Entrance Roller
Drive the media into the Duplex Unit.
■ Duplex Transport Rollers
Transport the media through the Duplex Unit and drive the sheet into the primary
paper path.
■ Duplex Motors
One motor drives the Duplex Entrance Roller, the other drives the Transport
Rollers using a series of belts.

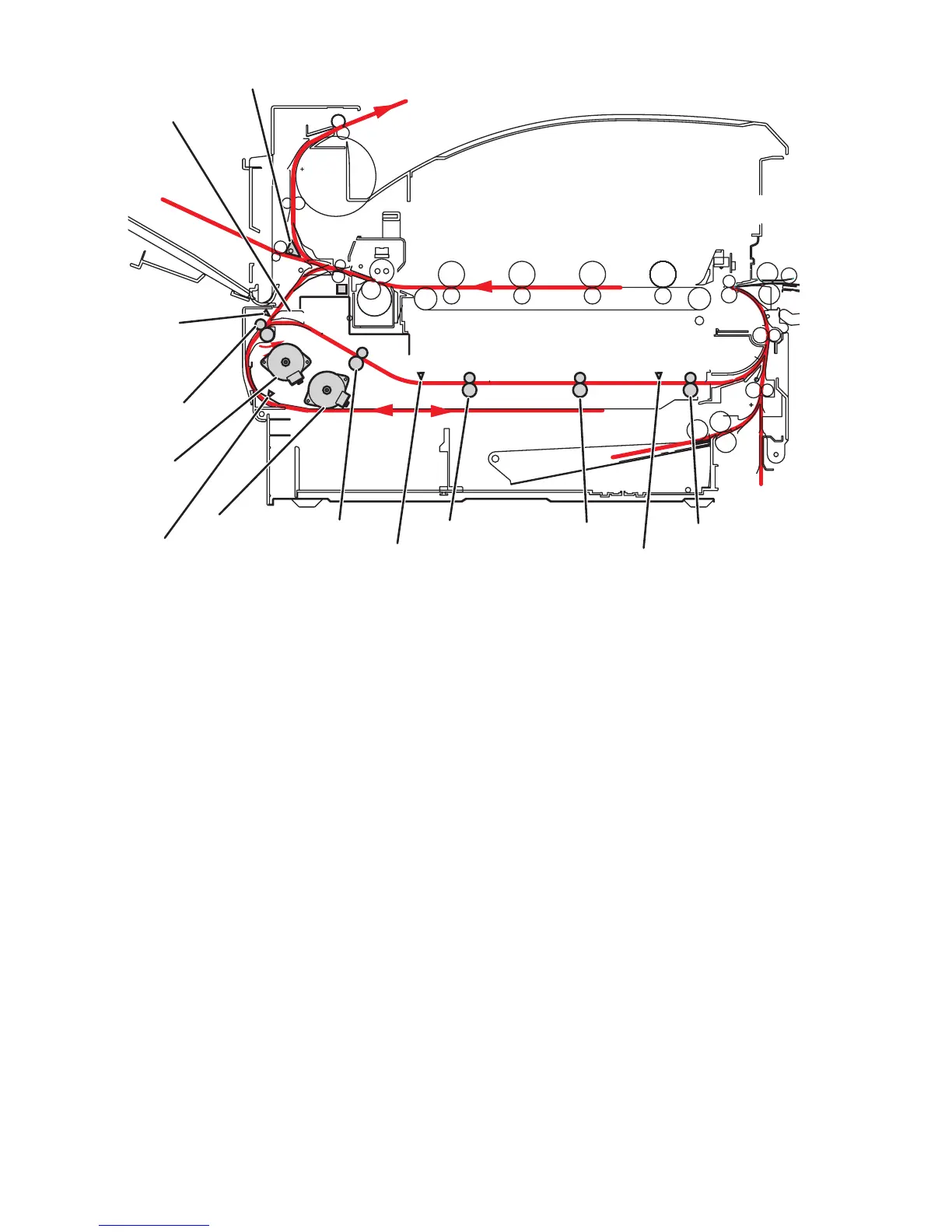

s7400-034
a
b
Duplex Reverse
Roller (1)
Exit Gate
Roller (3)
Roller (2)
Roller (4)
Roller (5)
Duplex
Entrance
Sensor
Duplex Gate
Motor A
Motor B
Rear Duplex Sensor
Front Duplex Sensor

Xerox Phaser 7400 Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 1200 DPI
Time to first page (black, normal)	12 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Print speed (color, normal quality, A4/US Letter)	36 ppm
Storage media	HDD
Internal memory	512 MB
Processor model	PowerPC
Maximum internal memory	1 MB
Internal storage capacity	20 GB
Total input capacity	800 sheets
Maximum input capacity	3000 sheets
Paper tray 2 input capacity	350 sheets
Auto document feeder (ADF) input capacity	1650 sheets
Maximum print size	297 x 420 mm
Paper tray media types	Envelopes, Labels, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
Maximum ISO A-series paper size	A3
Power requirements	100-240V, 50/60Hz
Networking features	Fast Ethernet
Supported media weight(s)	270 g/m²
Maximum operating temperature range (T-T)	10 - 32 °C
Certification	FCC p.15 A, CE
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-4 - 140 °F
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Maximum duty cycle	150000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	1438 x 623 x 975 mm
