Xerox Phaser 7400

8-58 Phaser 7400 Color Printer Service Manual

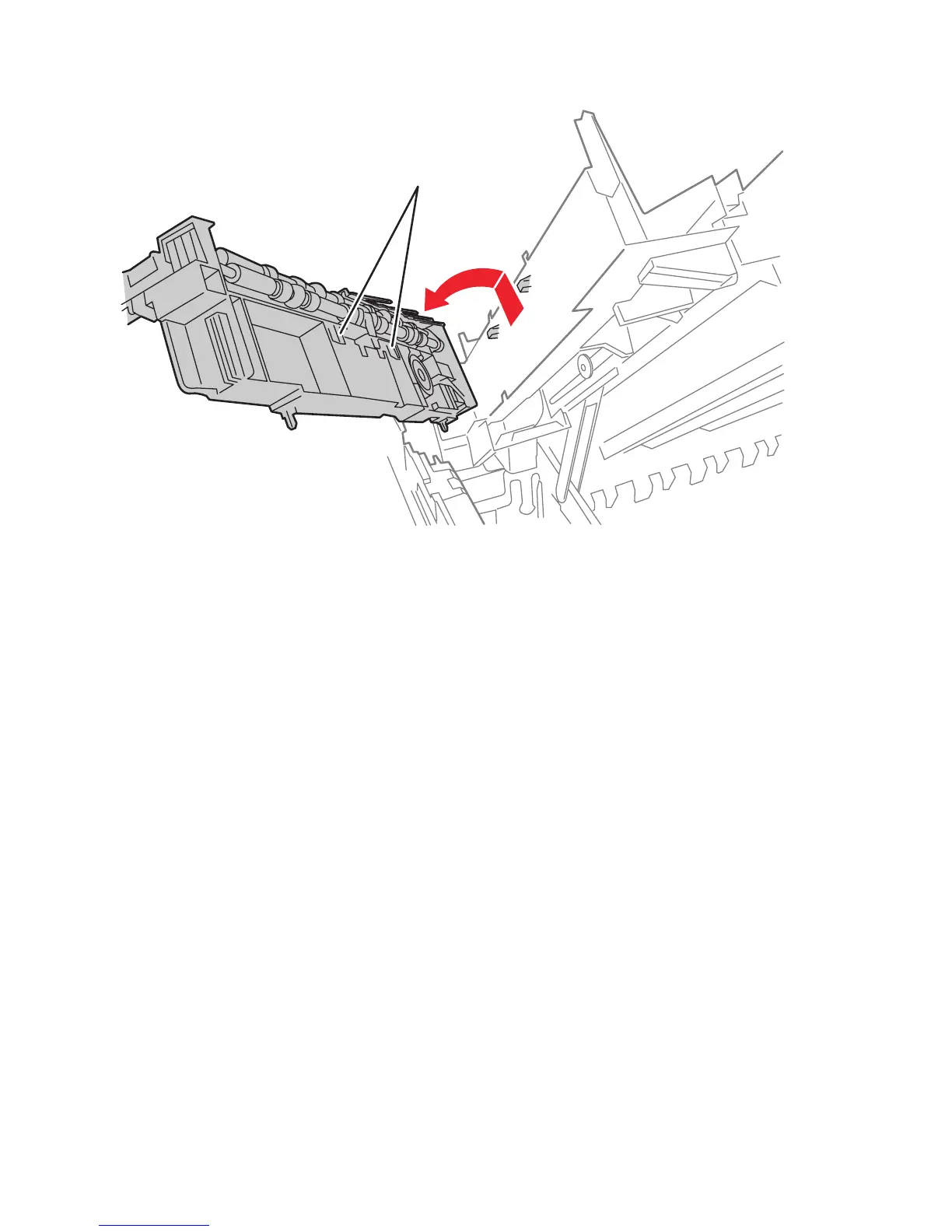

4. Lift the assembly, and then move the front to the left to reveal the Job Offset
Motor and connector at the back of the assembly.
5. Disconnect the Offset Motor from the harness (P/J90).
6. Remove the Job Offset Assembly.
s7400-420
Hooks
