Service Parts Disassembly 8-49
7. Turn the feeder top upright, and the release the 2 hooks that secure the sensor
housing to the top of the feeder.
8. Release the hooks that secure the sensor in the housing.
9. Disconnect the sensor connector (P/J42), and then remove the sensor.
Replacement Note
Use care when replacing the feeder top. Make sure the Level, and Low Paper
Sensor flags operate properly before tightening the screws.
Feeder Assembly

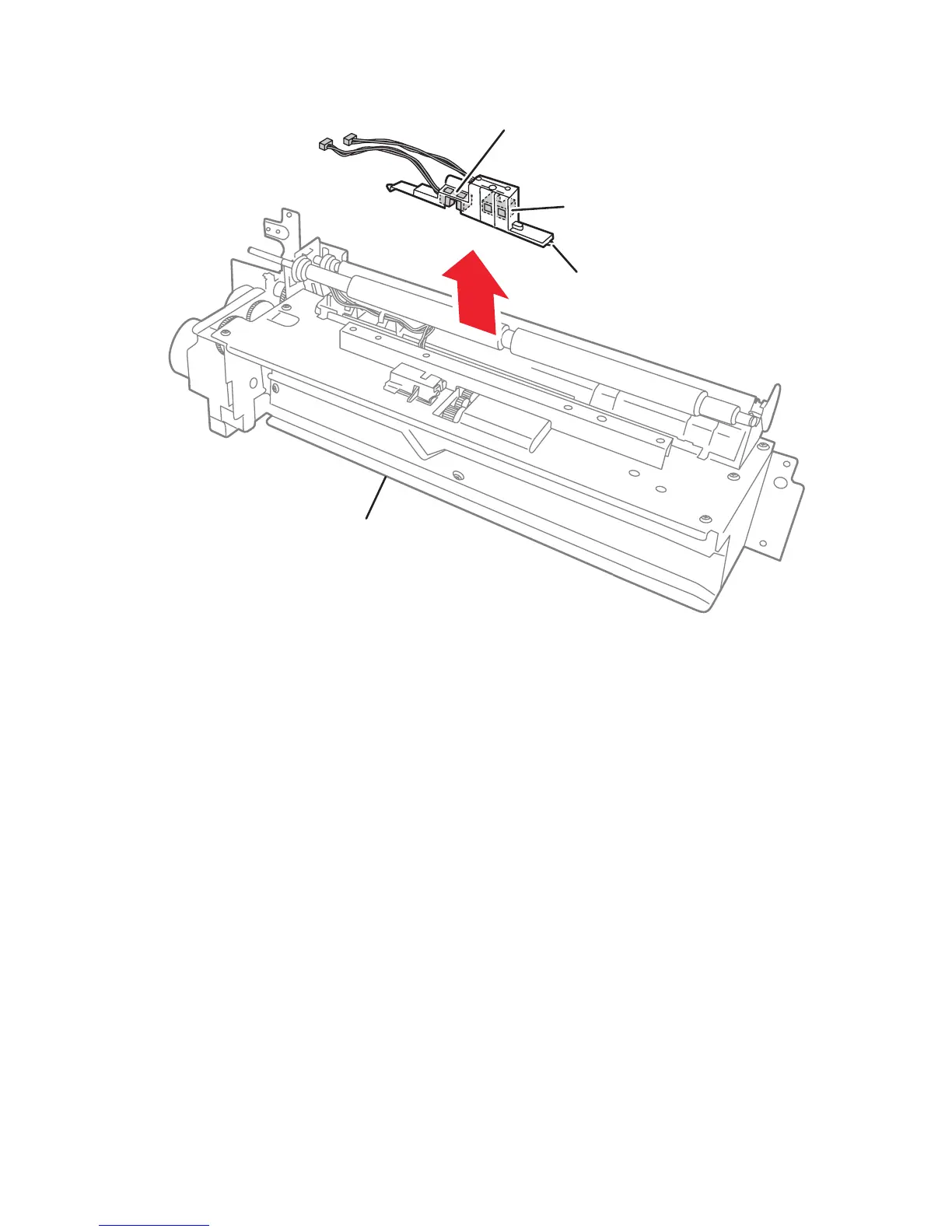

s7400-529
Registration #2 Sensor
Feed Out #2 Sensor
Sensor Cover
