18. Release the bushings from the flange on the frame to remove the Basket
Assembly.
Replacement Note
Observe these notes as you reassemble the Basket Assembly.
1. Replace the screws that secure the Inner Shaft to the Dampers before
replacing the E-ring at the end.
2. Align the Guide Rollers at the end of each Lower Basket Assembly arm
in the tracks before securing the Dampers.
3. Move the outer stops to the rear before installing the Pins.
s7400-577

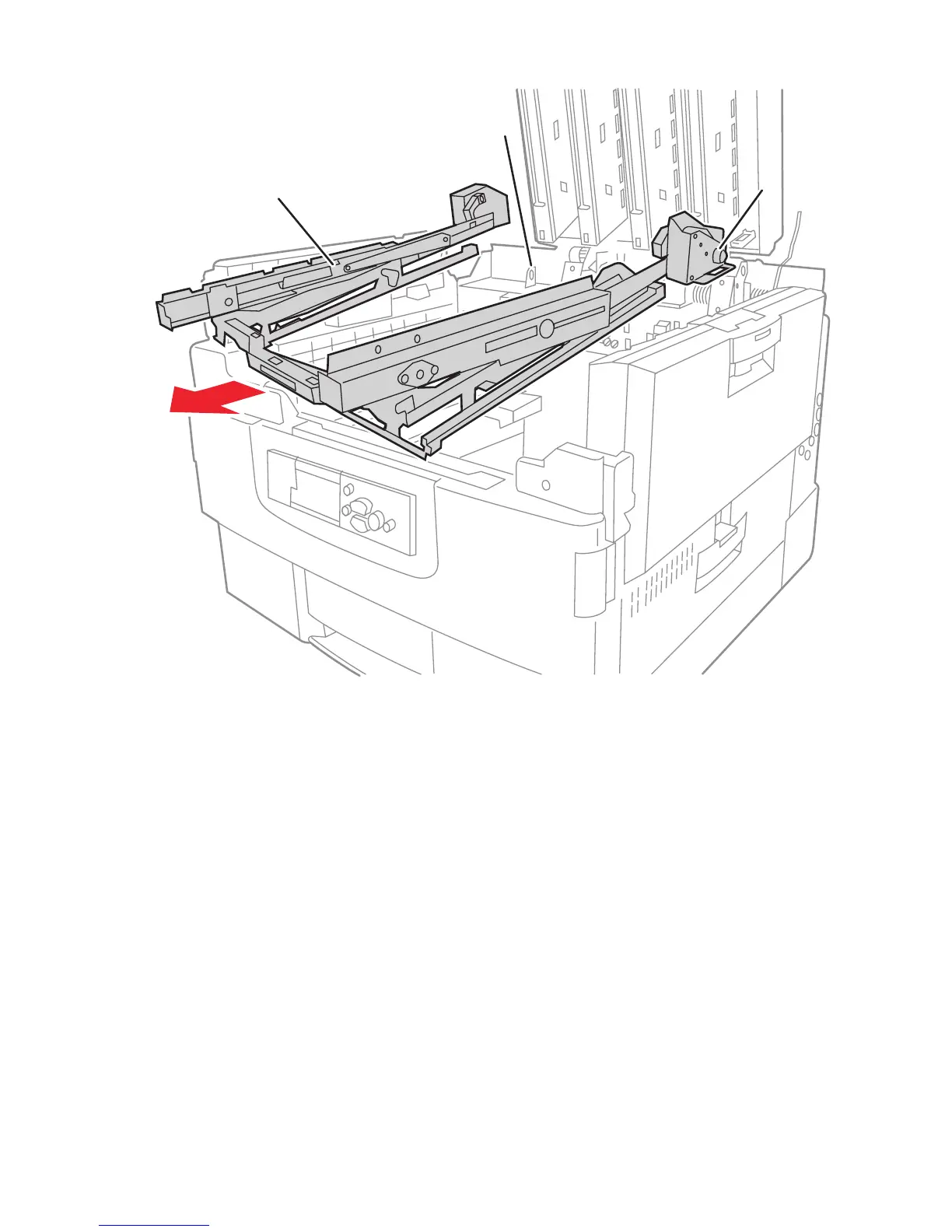

Basket Assembly
Flange
Bushing
Bushing
Bushing
