Service Parts Disassembly 8-101

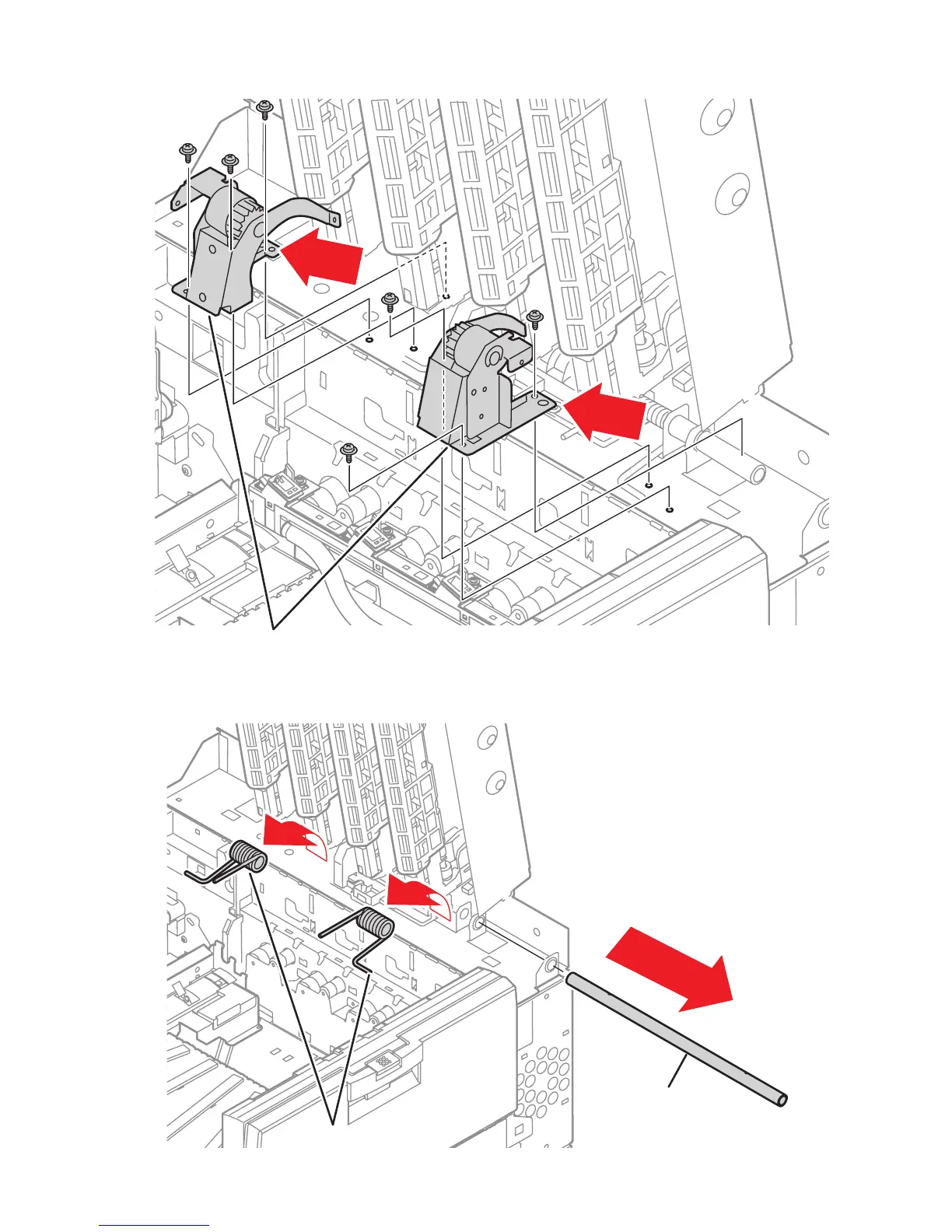

8. Remove 6 (metal, 10 mm) and 2 (metal, 6 mm) screws that secure the 2
Dampers.The 2 (metal, 6 mm) screws are located on the back of the printer.
9. Make note of the Torsion Spring position, and then remove the Outer Shaft by
pushing in the direction of the arrow.
Inner Damper Assemblies
s7400-193
s7400-195
Outer Shaft
Springs
To Next Page
