Xerox Phaser 7400

10-22 Phaser 7400 Color Printer Service Manual

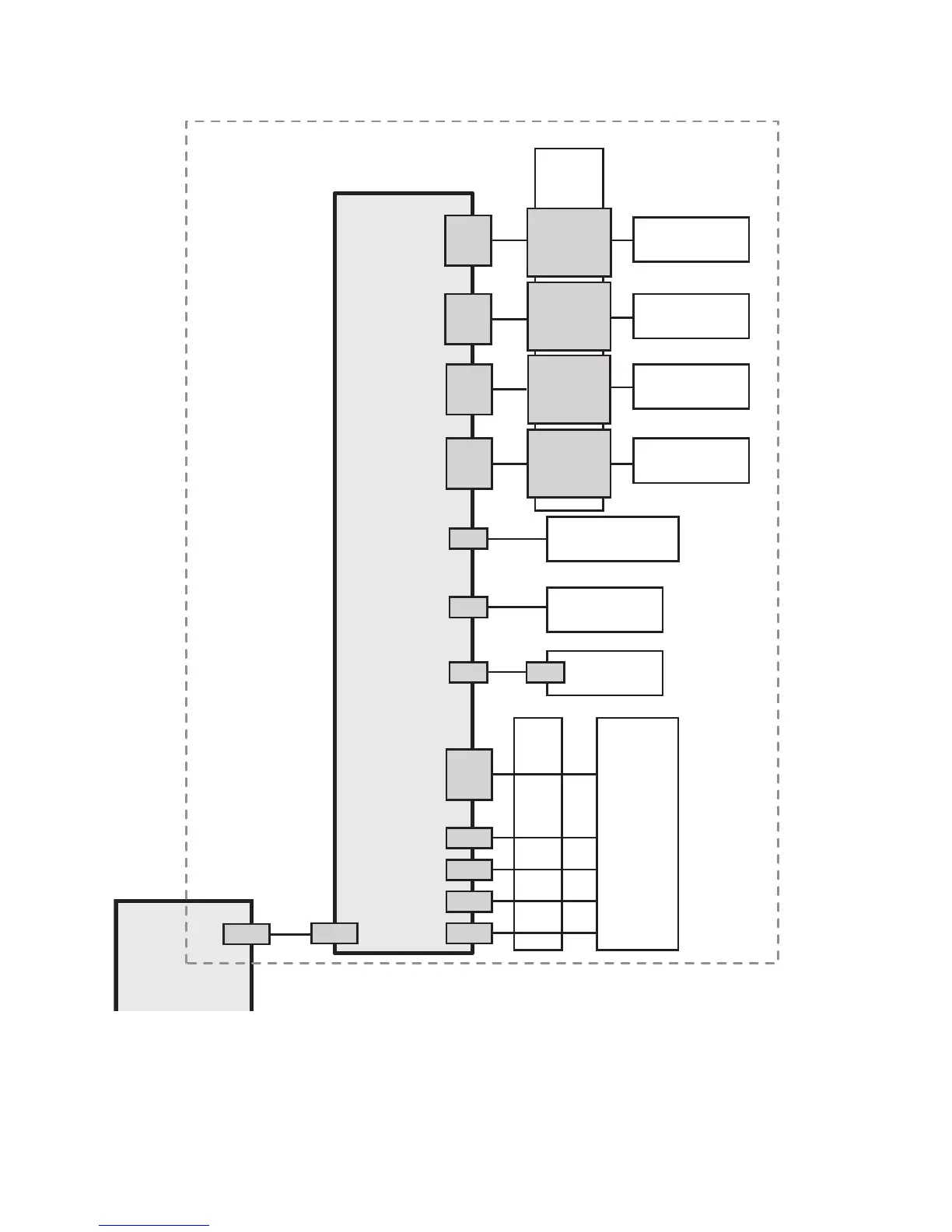

Print Engine General Wiring (4/7)
HVOLT
Waste Toner
Reservoir Full
Top Cover
Interlock
Waste Toner Reservoir
Detect Switch
K Image Unit
Y Image Unit
HVPS
Cover
Transfer Unit
HVPS
Engine Control Board
141 K
Y
M
C
JC
17, 18
35, 36
JC
27-34
Housing
Bias
Assembly
RF
CF
DA
DB
RF
CF
DA
DB
RF
CF
DA
DB
RF
CF
DA
DB
JC
19-26
JC
9-16
JC
1-8
CN4 220
CN2
CN3
M Image Unit
C Image Unit
Xerographics
s7400-596
