Xerox Phaser 7400

2-18 Phaser 7400 Color Printer Service Manual

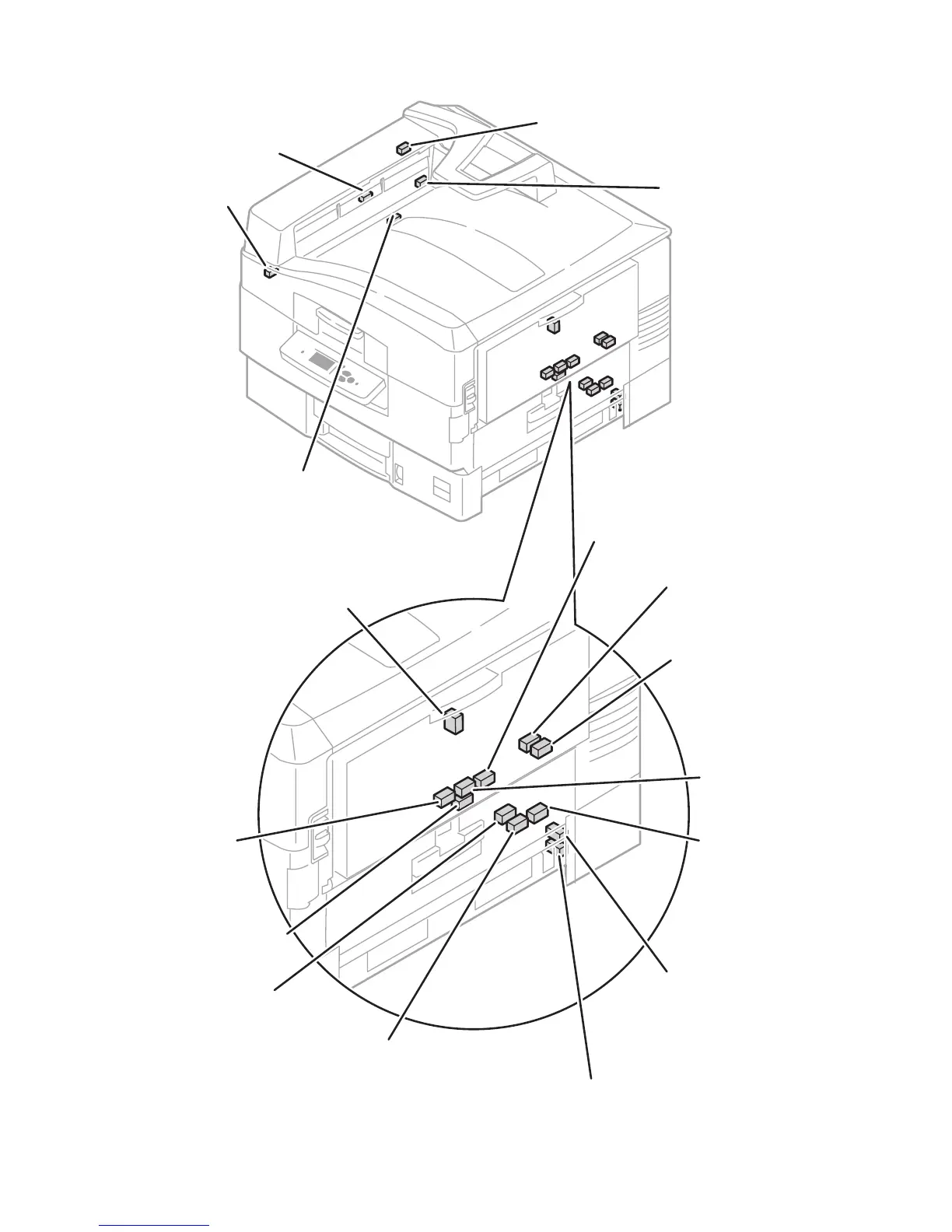

The diagram below identifies the paper feed sensors.
Top Output Tray Stack Full Sensor
Job Offset Home Position Sensor
Side Output Tray
Stack Full Sensor
Tray 2 Low Paper Sensor
Tray 2 Level Sensor
Registration
Sensor #1
No Paper Sensor #2
Feed Out
Sensor #2
OHP Sensor
MPT No Paper
Sensor
MPT Level
Sensor
Side Output Tray
Detect Sensor
Transfer Unit
Entrance
Sensor
Paper Size Switch
Feed Out #1
Sensor
Registration Sensor #2
Job Offset
Trailing Edge Sensor
s7400-58
