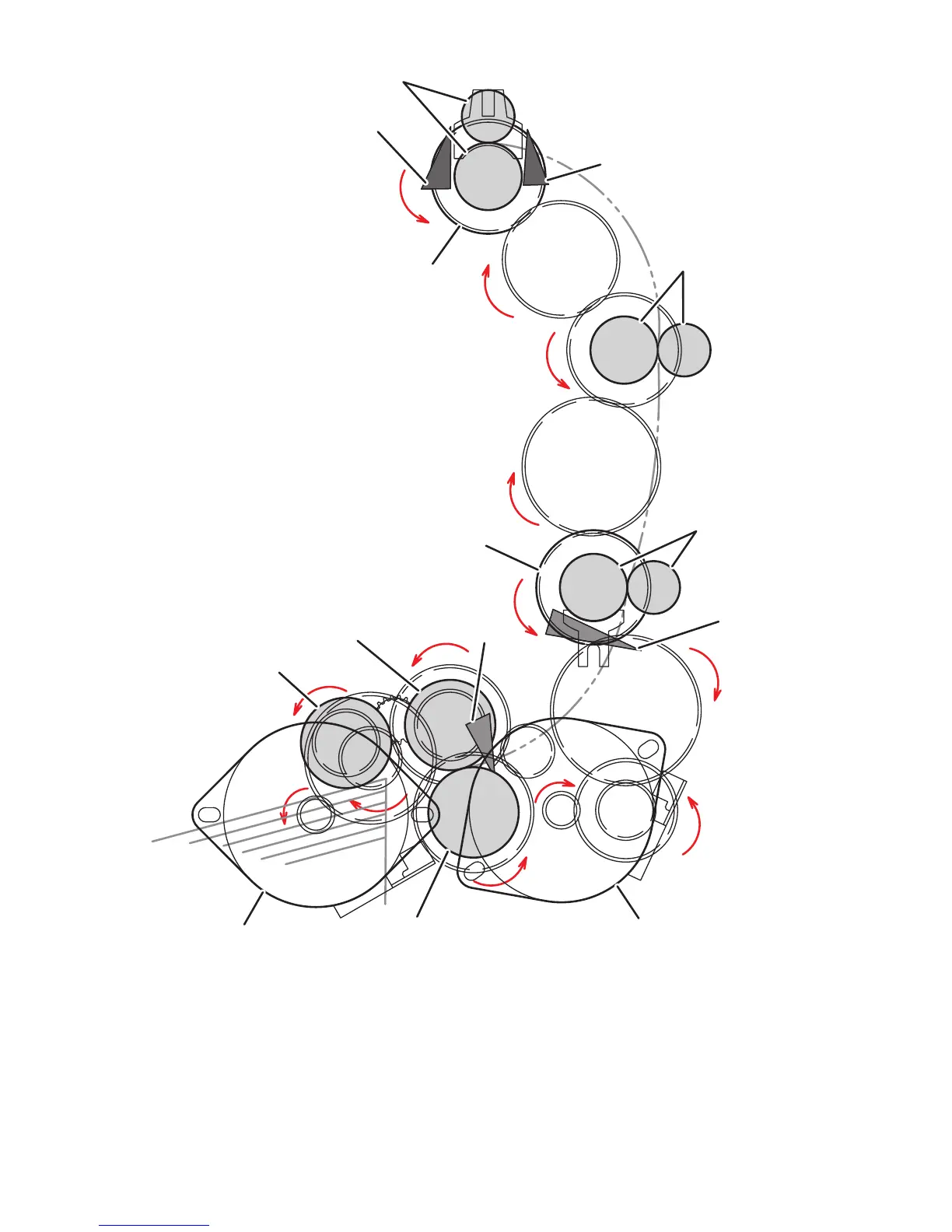

Theory of Operation 2-31
Paper
Registration Roller #1
Transfer Unit
Entrance Sensor
Registration Sensor #1
Registration
Sensor #2
Registration
Clutch #1
Registration
Clutch #2
Transport Rollers
Registration
Roller #2
Pick Roller
Feed Roller
Feed-Out
Sensor #2
Retard Roller
Feed Motor
Registration Motor
s7400-026
