Xerox Phaser 7400

2-34 Phaser 7400 Color Printer Service Manual

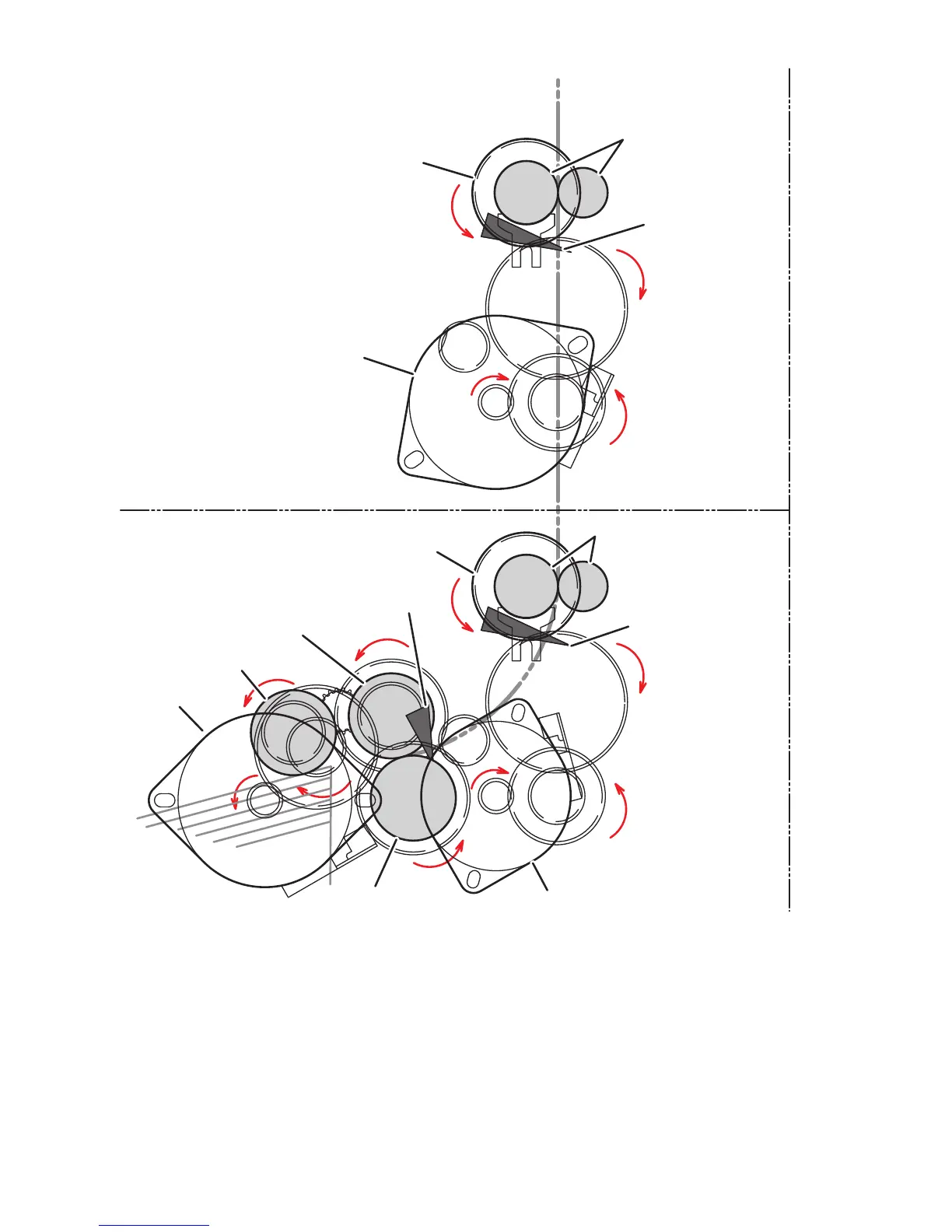

The paper supply and path for the optional trays involve these components:
■ Level Sensor
Detects presence of media in the tray based on the position of the Actuator.
■ Paper Size Switches
Detects media size using the position of the side and rear guides, and presence of
the paper tray.
Tray 2
Tray 3
Registration Roller #3
Registration Roller #2
Pick Roller
Feed Roller
Feed-Out
Sensor #3
Registration
Sensor #3
Registration
Sensor #2
Registration Clutch #2
Registration Clutch #3
Retard Roller
Feed Motor
Registration Motor
Registration Motor
s7400-027
