E5071C
226

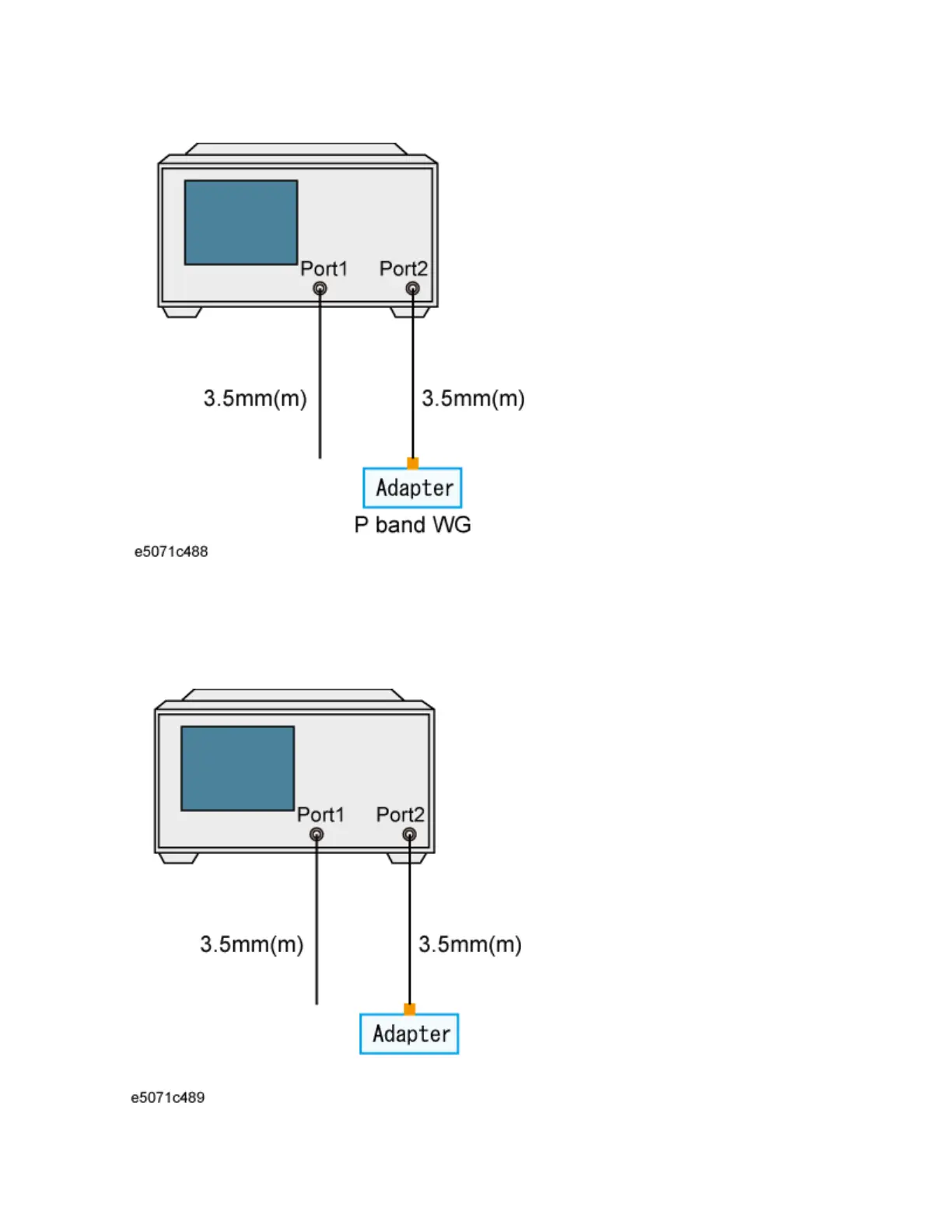

1.
Using
Adapte
r Inser
tion:
a.
P
erform a S
OLT F2P Cal
ibrati
on at Port 1 (3.
5mm) u
sing
Z0=50 ohm
b.
Perform
Adap
ter i
nsertion
at P
ort 2 (Z0=1)
usi
ng P11644A
226
228
