E5071C
246
• Since the up/down conversion method is used in vector-mixer
calibration, the frequency-offset function is not used. But,
option 008 is required to use the VMC macro, SG control, and
etc.

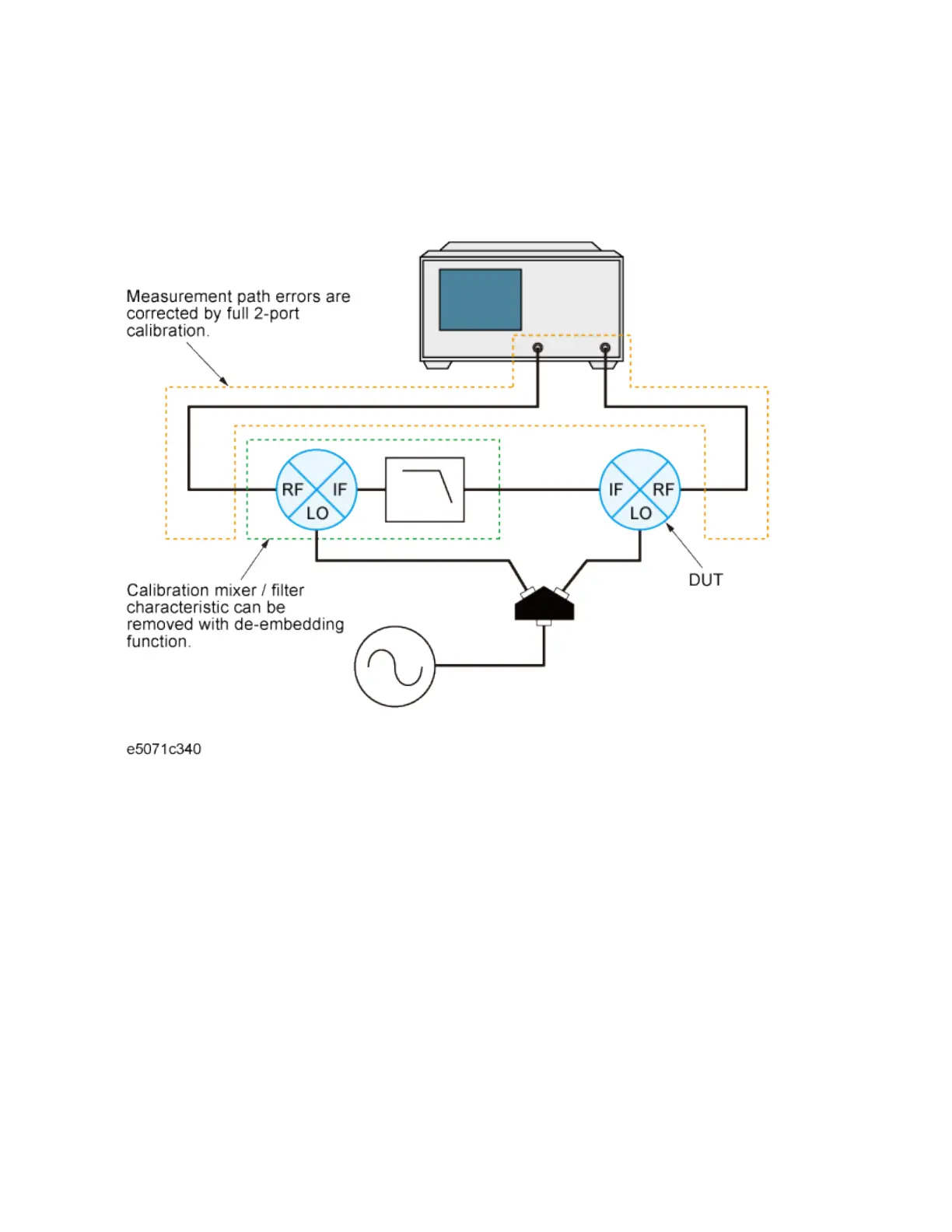

Overview of Vector-Mixer Calibration
The vector-mixer calibration requires the characteristics data for the
calibration mixer with IF filter.
Measured mixer
A measured mixer (DUT) signifies an unknown target mixer of
measurement. However, a measured mixer meeting the requirements for a
calibration mixer can be used as a calibration mixer.
Calibration mixer (with IF filter)
The calibration mixer is required for supporting the measurement system
of the up/down conversion. You must also evaluate in advance the
frequency response characteristics of the calibration mixer. The vector-
mixer calibration method obtains the characteristics of the measured mixer
alone by using the network de-embedding function to eliminate the
