Measurement
335
complex c, complex d) a)*(1-d) - b*c)
Z22(scalar i, scalar j) returns Z22(Sii, Sji, Sij, Sjj)
1. For both mu1 and mu2, conj is the complex conjugate. For
scalars a and b, conj(a+ib)=(a-ib).
Channel Parameter Data
data corrected data
data(scalar i) corrected data of trace i (trace number)
mem memory data
mem(scalar i) memory data of trace i (trace number)
xAxis x-axis data
xAxis(scalar i) x-axis data of trace i (trace number)
S11 - S44 S-parameter data
• When a trace number is out of range, the ENA indicates an error
message, “Equation runtime error” and equation is not reflected
on the trace. The maximum number of traces can be set by
System > Misc Setup > Channel/Trace Setup.

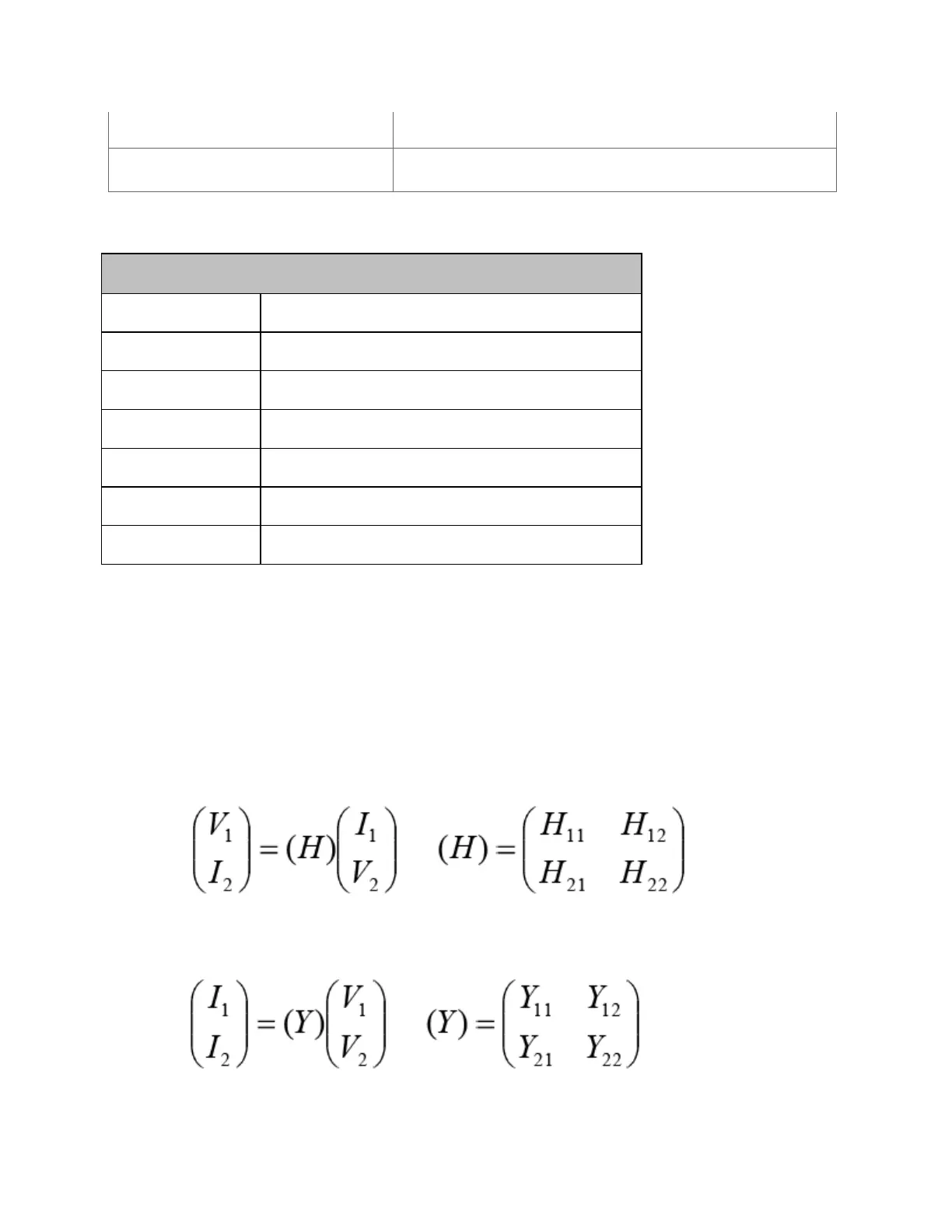

Converting S-Parameters to H, Y, Z, F & T-Parameters
The following section provides definition of the two port parameters in
Equation Editor of the ENA.
1. Hybrid parameters (H)
2. Admittance parameters (Y)
