13. Certificate of Authenticity Label

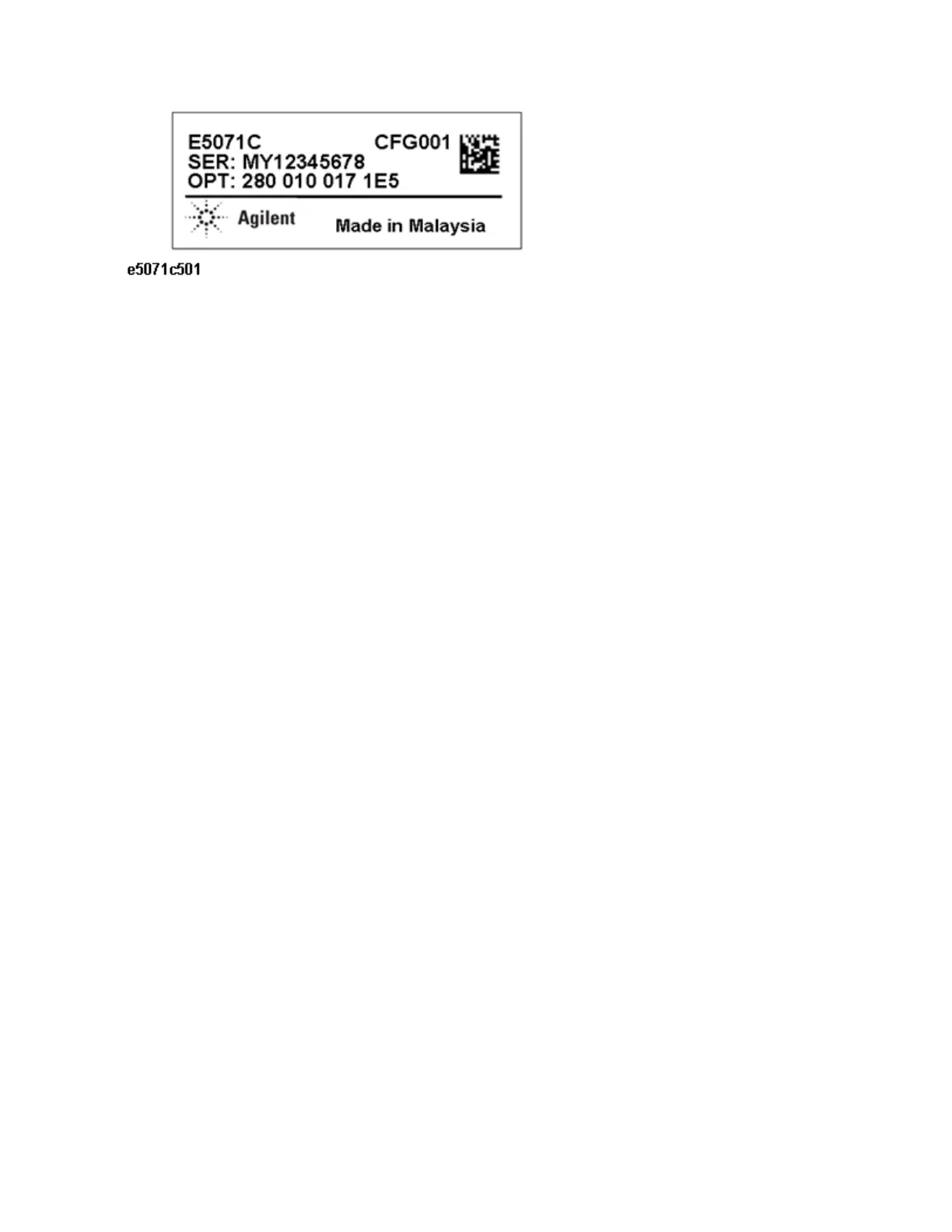

The label showing the information of the "Certificate of Authenticity."
14. Rear USB Port
Four USB (Universal Serial Bus) ports are provided that can be used for
connecting to ECal (Electronic Calibration) module, USB, Multiport test set
or a printer. Connecting a designated ECal module to this port enables ECal
measurements to be taken. Connecting a compatible printer to this port
enables screen information on the E5071C to be printed.
• The specifications of this port are identical to the Front USB Port.
15. Reserved Port (Reserved)
These ports are not available for use (reserved ports).
16. Reserved Port (Reserved)
This port is not available for use (reserved port).
17. Mini-DIN Keyboard Port
A port to which a mini-DIN type keyboard is connected. The keyboard can
be used to edit VBA programs inside the E5071C or to enter file names.
Since the arrow keys and numeric keys on the keyboard work in the same
way as the arrow keys and numeric keys on the front panel of the E5071C,
you can use it instead of front panel operation.
• Though E5071C comes with a Mini-DIN Keyboard port, use of a USB
Keyboard is recommended.
18. Mini-DIN Mouse Port
The port to which a mini-DIN type mouse is connected. Using a mouse
enables you to more efficiently perform the operations of menu bars,
softkeys, and dialog boxes as well as selecting an active channel or an
active trace. The mouse also enables you to move a marker or the scale
reference line by using drag-and-drop operations.
• Though E5071C comes with a Mini-DIN Mouse port, use of a USB
Mouse is recommended.
19. USB (USBTMC) Interface Port
