Quick Start
55
Three Methods of Operation
You can operate the E5071C using one of three operating methods: using
keys on the front panel, using a mouse and keyboard, and using the touch

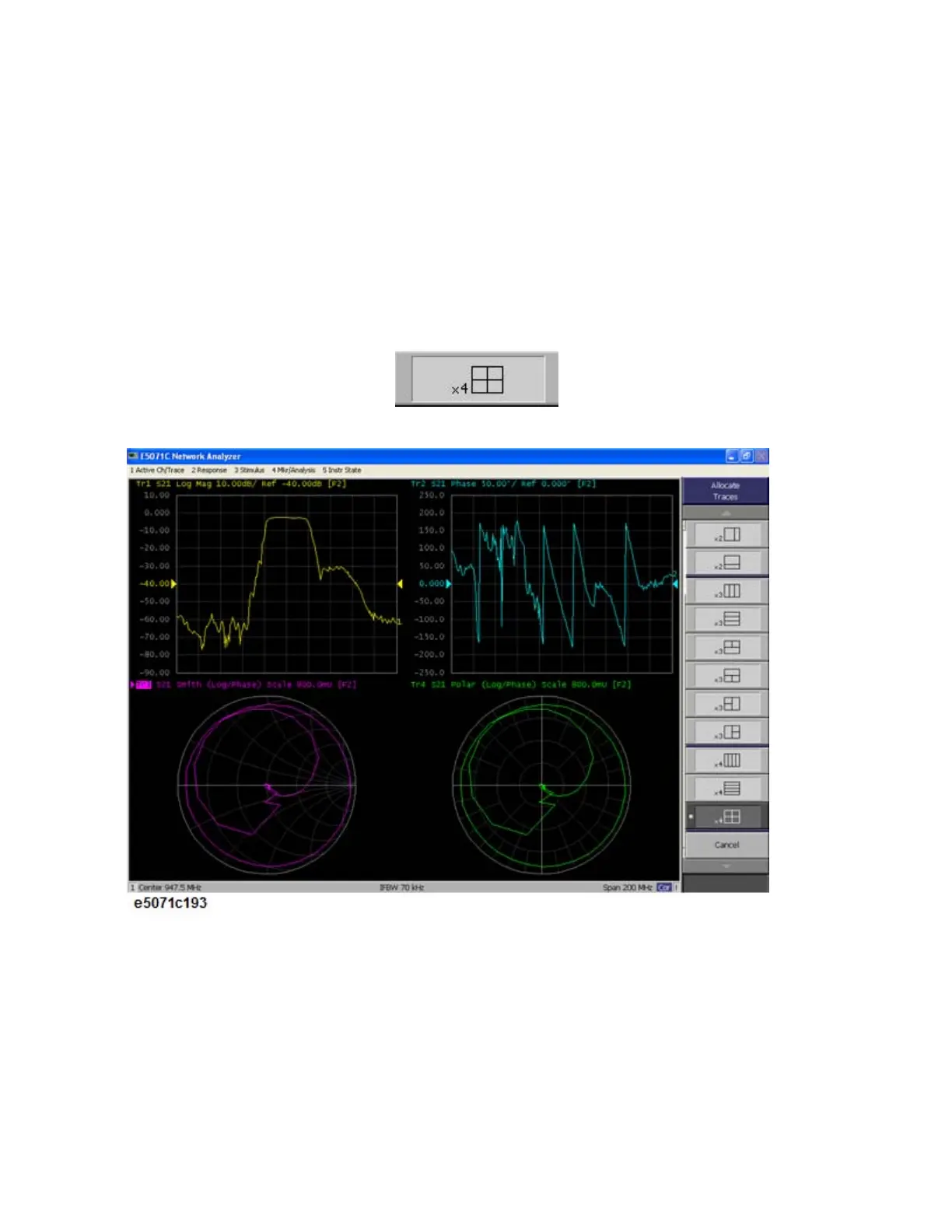

screen. This section illustrates these three operating methods through the
example in which the channel window layout is set to the four-channel
display as shown in the following figure.
In the next section and those following it, a series of operations is
expressed as follows:
Display > Allocate Traces >
Four-Trace Display
Operating Method Using Keys
1. Press the DISPLAY key in the RESPONSE Block.
To Next Page
