Measurement
423
5. Selecting Measurement Parameters
The mixed-mode S-
parameters are selected.
6. Extending the Calibration Plane
(removing the cause of error)
The calibration reference
plane is extended.
7. Setting the Port Reference
Impedances
The port reference
impedances are specified.
8. Adding a Matching Circuit A matching circuit is added.

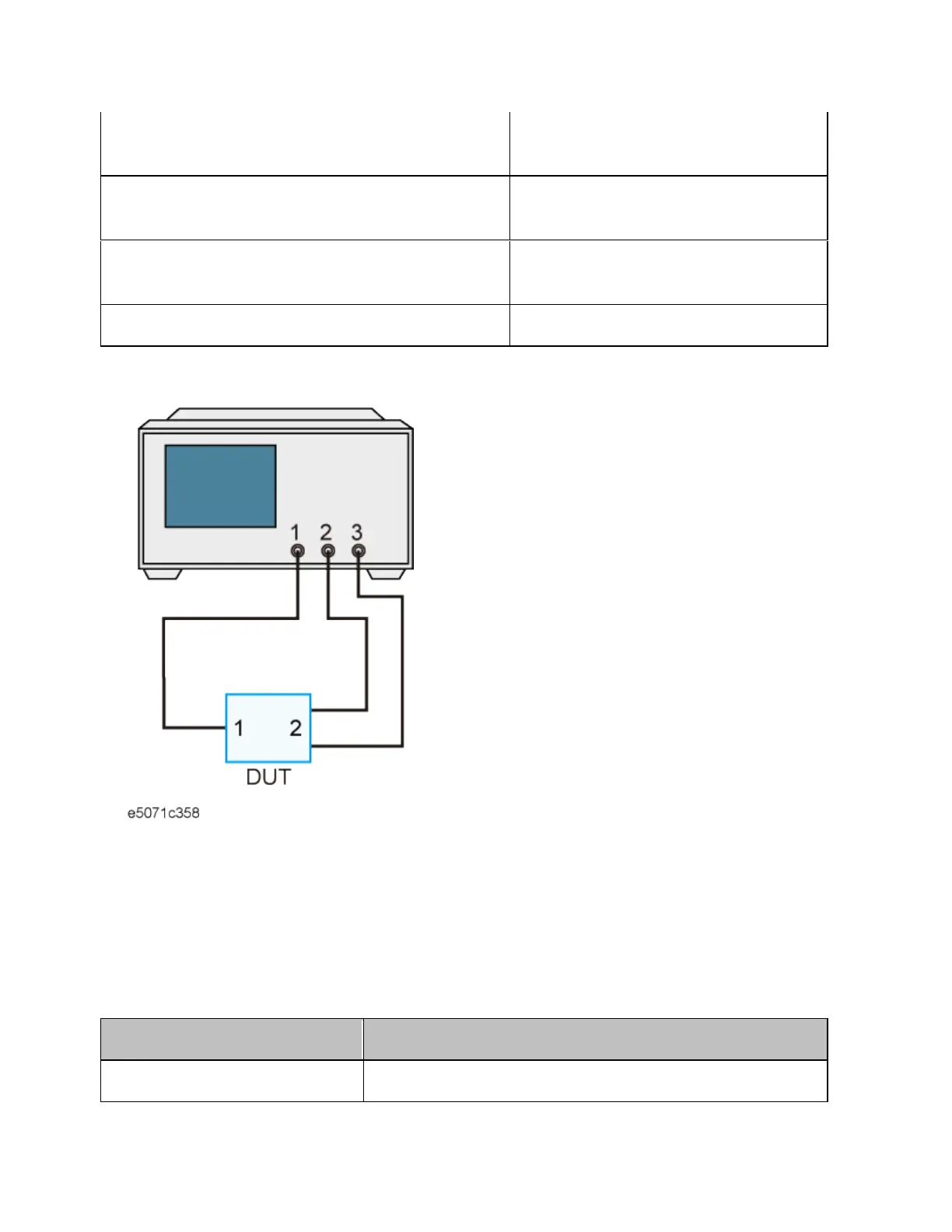

1. Connecting the DUT
Connect the DUT to the E5071C by using the instrument's three test ports.
2. Setting the Measurement Conditions
Follow the procedure below to set the measurement conditions. The
measurement parameters for balanced measurements should be set after
unbalanced-balanced conversion. Here, set the measurement parameters
for observing the characteristics achieved during unbalanced
measurements.
Setting Description Key Operation
Preset for setting Preset > OK
