• E5071C
• External controller (PC or workstation that can be connected to LAN)
• Other devices (other instruments and/or peripherals that serve your
purpose)
• LAN cables
Control over SICL-LAN Server
In the control system using the SICL-LAN server, communication between
the external controller (client) and the E5071C (server) is performed using
the SICL-LAN protocol. Communication is performed using SICL (Standard
Instrument Control Library). You can control the E5071C by programming
using SICL or VISA with the C language in the UNIX environment, or Visual
C++, Visual Basic, or VEE in the Windows environment.
Preparing the E5071C
To communicate with the external controller, follow these steps to turn on
the SICL-LAN server of the E5071C in advance.
1. Turn on the SICL-LAN server of the E5071C.
System > Misc Setup > Network Setup > SICL-LAN Server [ON]
2. When the SICL-LAN server is turned ON for the first time, the
windows firewall setting dialog box appears. To use the SICL-
LAN server, select Unblock and click OK.
2. Set the GPIB address of the E5071C for control with the SICL-LAN
server. "XX" represents an address number.
System > Misc Setup > Network Setup > SICL-LAN Address [XX]
3. By default, the SICL-LAN Address does not changes until the
firmware of E5071C is restarted.

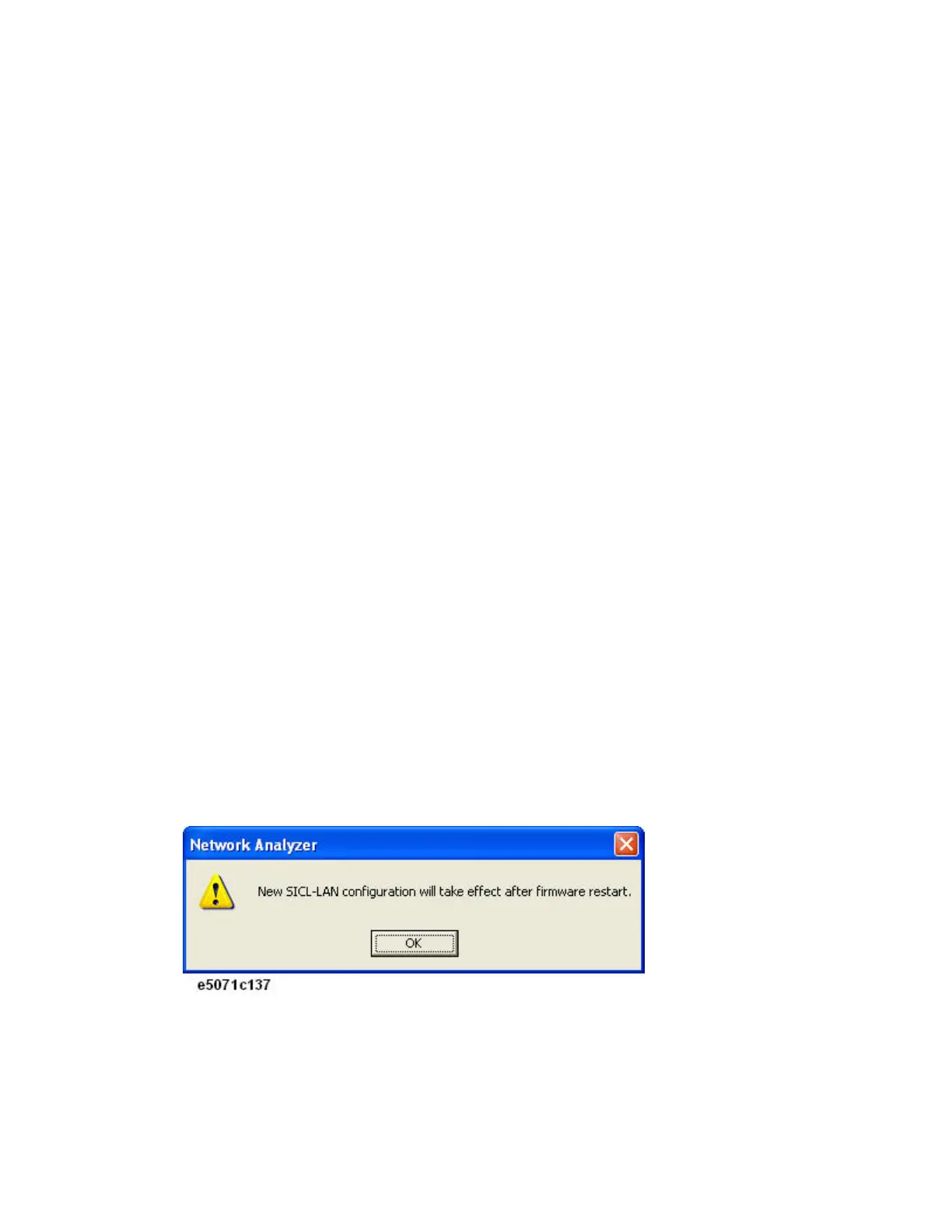

4. On pressing any key, a message appears for restarting the firmware.
Click Yes to restart the firmware.
To Next Page
