Programming
1145

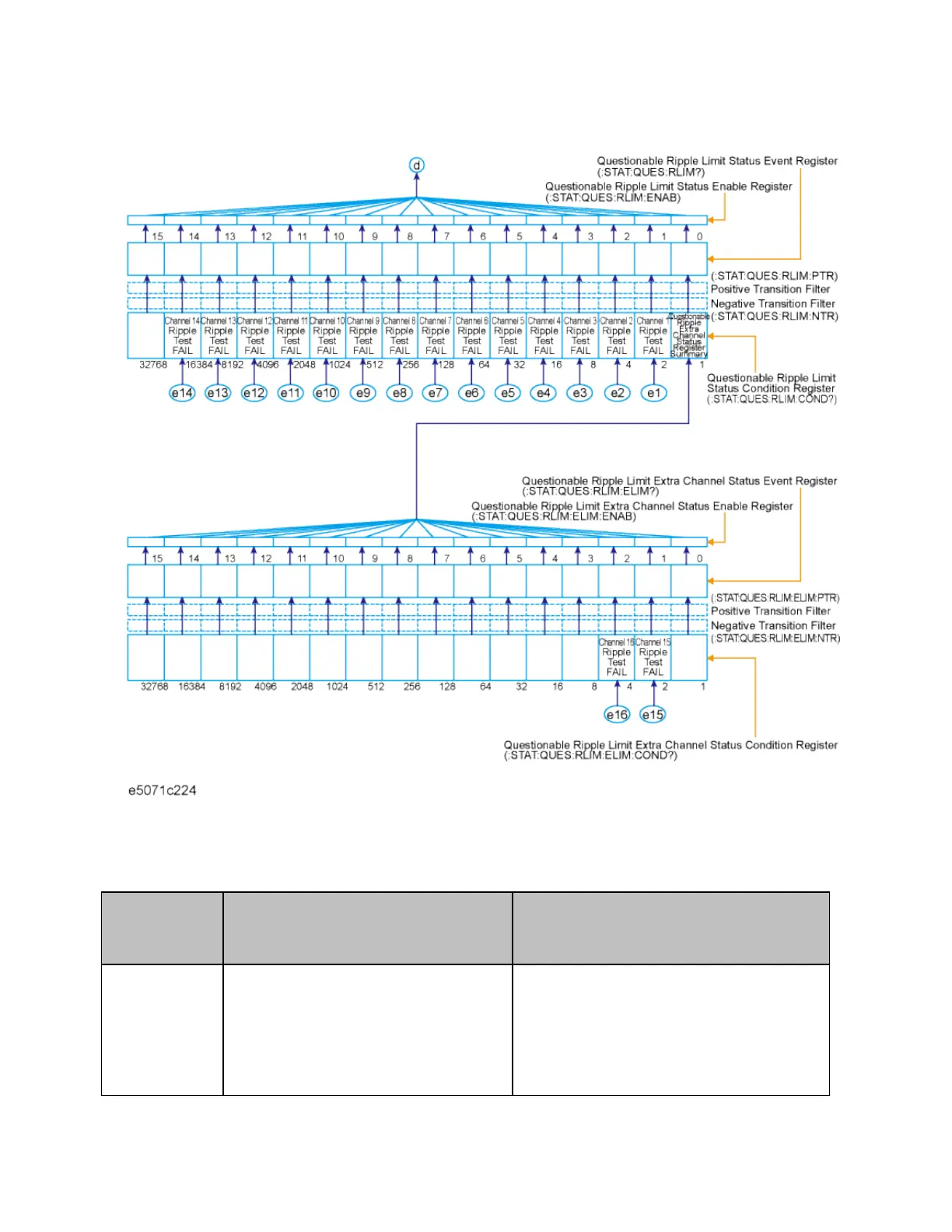

Status Register for Ripple Limit (Channel)
Status Bit Definitions of the Questionable Ripple Limit Status
Condition Register
Bit
Position
Name Description
0
Channel 15, 16 Ripple
Test summary
(questionable ripple limit
extra status register
summary)
Set to "1" while one of the
enabled bits in the
questionable ripple limit extra
status event register is set to
"1."
