Timing Chart
• Overview
• Timing Chart of I/O Port Signal
• Timing Chart of Data Output and Write Strobe Signal
• Timing Chart of Limit Test Result Output and Write Strobe Signal
• Timing Chart of /INPUT1 and /OUTPUT1, /OUTPUT2
Other topics about Communication with External Devices
Overview
This section shows the typical timing chart of I/O port Signal.

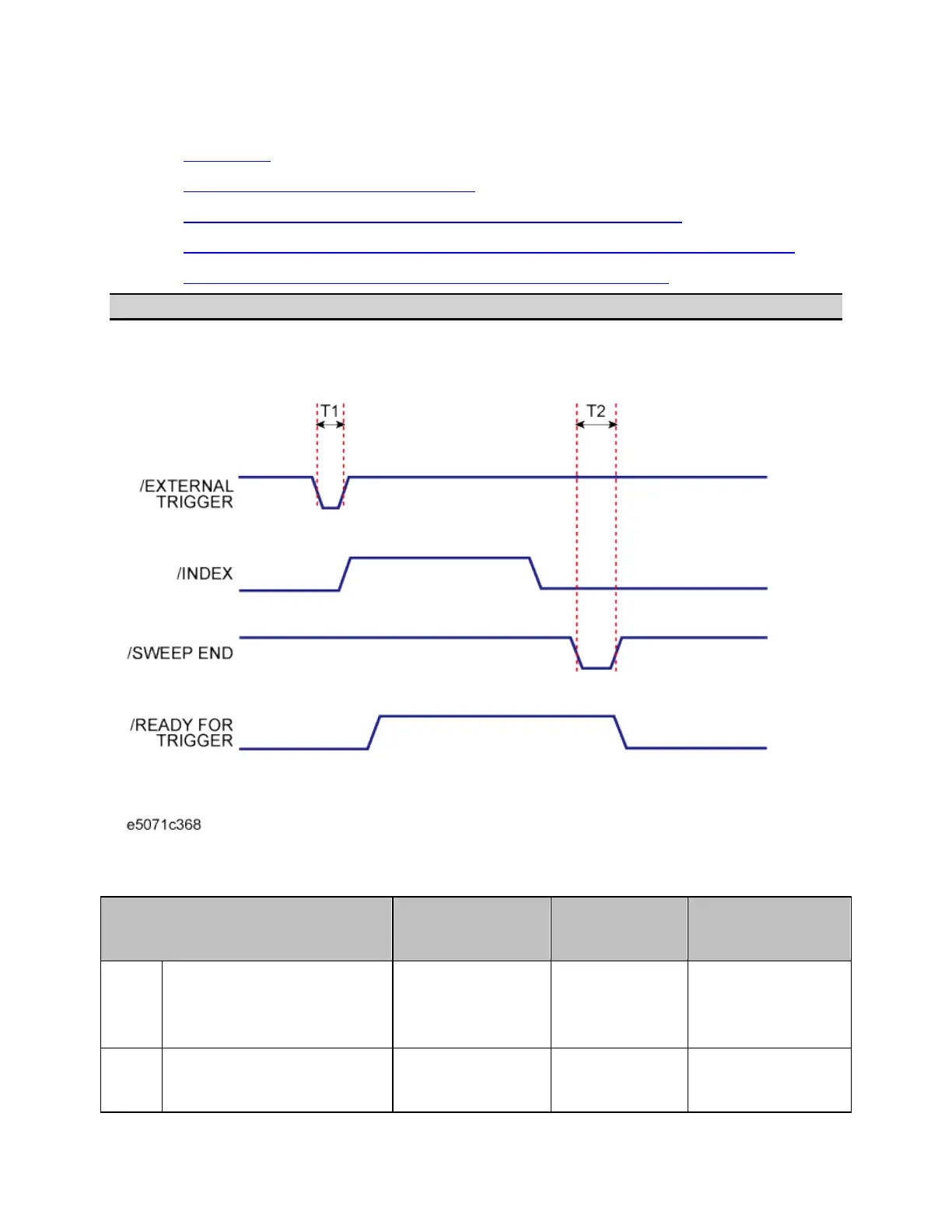

Timing chart of I/O Port Signal (Point trigger function: off)
Minimum
value
Typical
Value
Maximum
value
T1
Pulse width of
/EXTERNAL
TRIGGER
1 µs - -
T2
Pulse width of
/SWEEP END
10 µs 12 µs -
To Next Page
