Performing Search Tracking
1. Press Channel Next/Channel Prev keys and Trace Next/Trace Prev keys
to activate the trace on which you want to set up search tracking.
2. Press Marker Search key.
3. Click Tracking and turn the search tracking function ON/OFF.

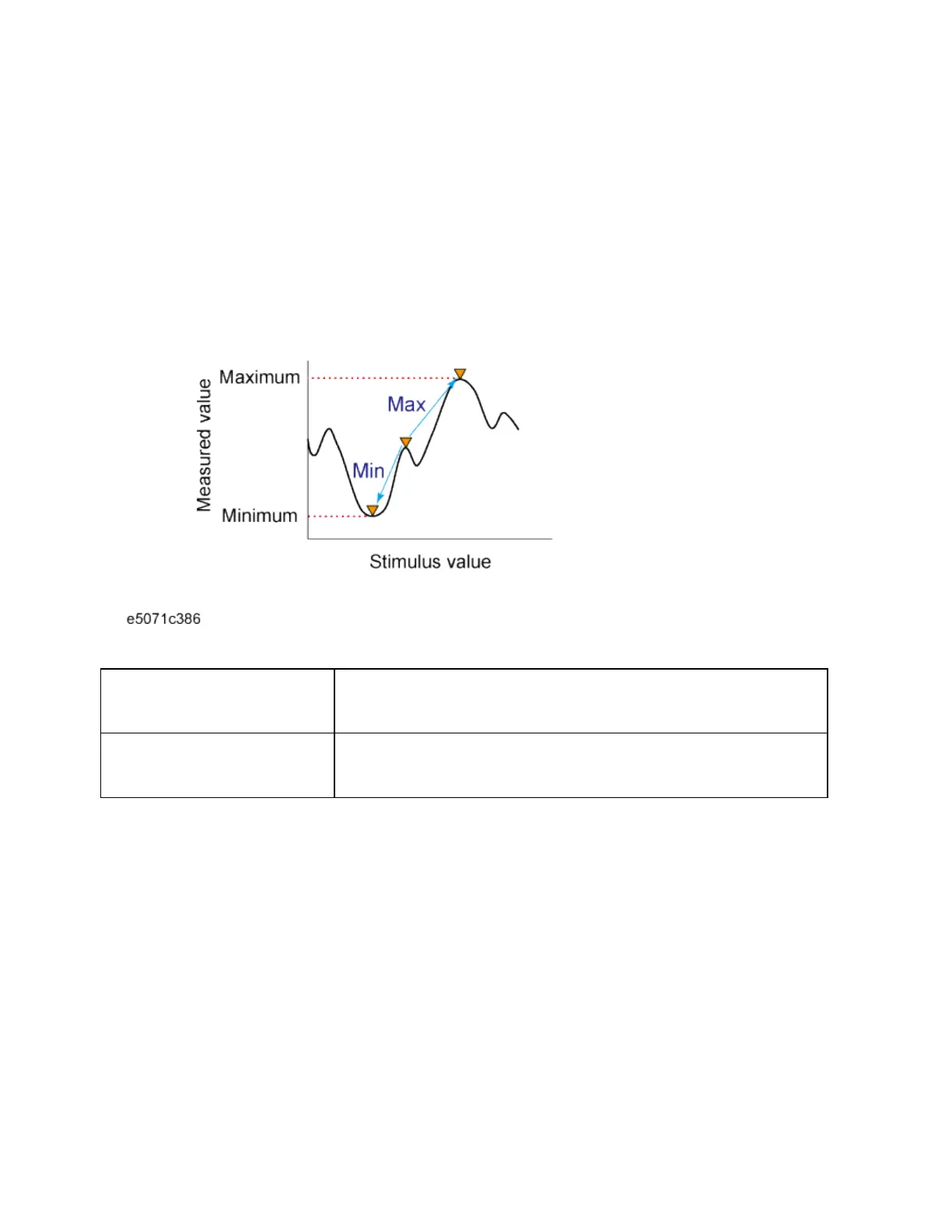

Searching for Maximum and Minimum Values
You can search for the maximum or minimum measured value on the trace
and move a marker to that point.
Search for
maximum (Max)
Move active marker to point on trace where
measured value is greatest
Search for minimum
(Min)
Move active marker to point on trace where
measured value is lowest
Procedure
1. Activate the marker you are using to search for the maximum and
minimum values.
2. Press Marker Search key.
3. Click the corresponding softkey to move the marker to the maximum
or minimum measured value.
• When the data format is in Smith chart or polar format, execute
the search only for the main response value.
Searching for the target value (target search)
