Bandwidth Test
• Overview
• Displaying Bandwidth Test Results
• Bandwidth Test Setup
• Turning Bandwidth Test and Displaying Results ON/OFF
Other topics about Data Analysis
Overview
The bandwidth test function can be used for testing bandwidth for the
band-pass filters.

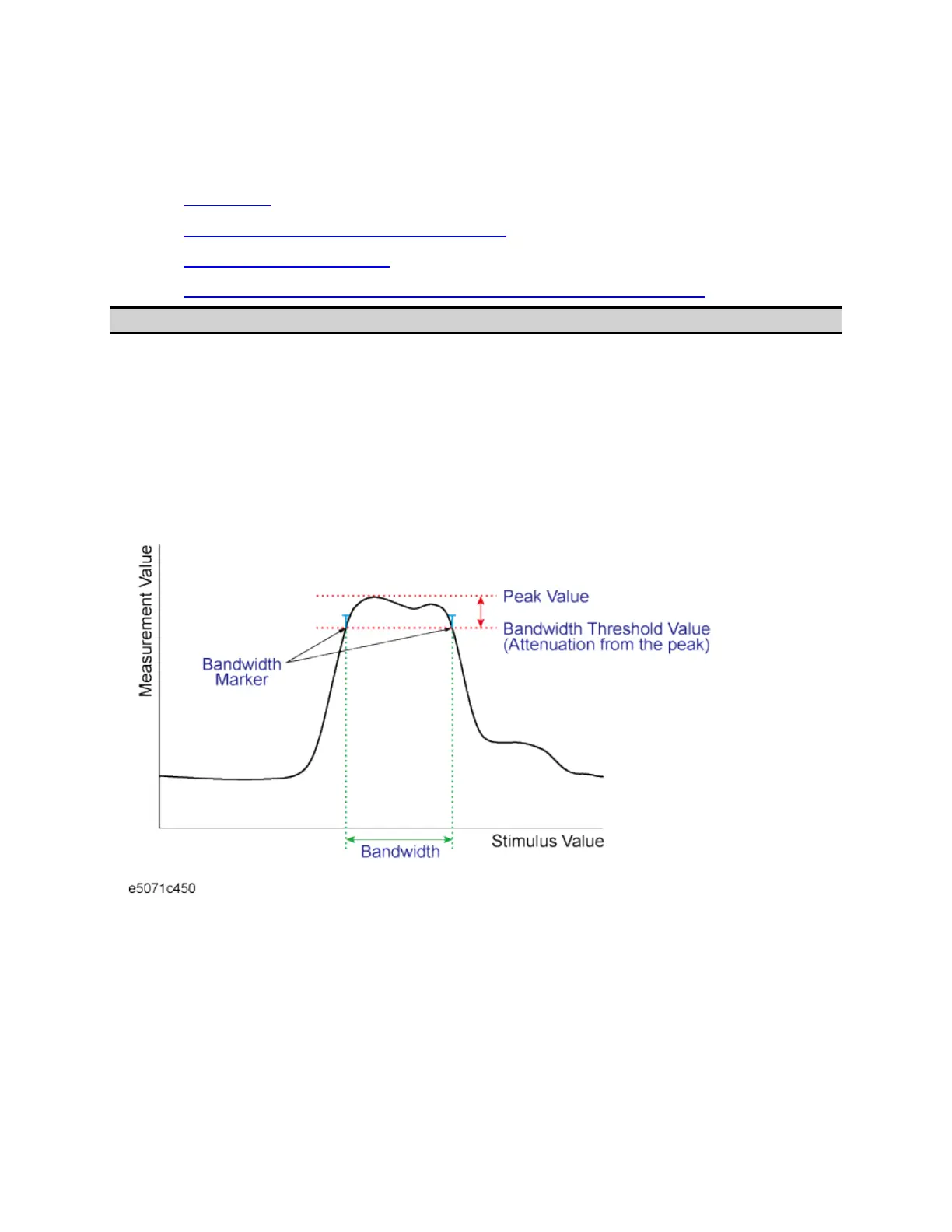

The bandwidth test find the peak of a signal in the passband and locates a
point on each side of the passband at an amplitude below the peak
specified in test setup. The frequency between these two points is the
bandwidth of the filter. Then the obtained bandwidth is compared to
minimum and maximum allowable bandwidth that you specify beforehand.
Displaying Bandwidth Test Results
Test Result for Trace
The test result of the trace will be indicated in the upper-right area of the
graph for each trace, following BWn:. "n" denotes the trace number. The
results are shown as Pass, Wide, Narrow, or >Span (Fail). You can also
display the bandwidth value.
