Measurement
323
• Even if the E5071C's sweep range is changed after the stimulus
value has been set, the stimulus value is not susceptible.

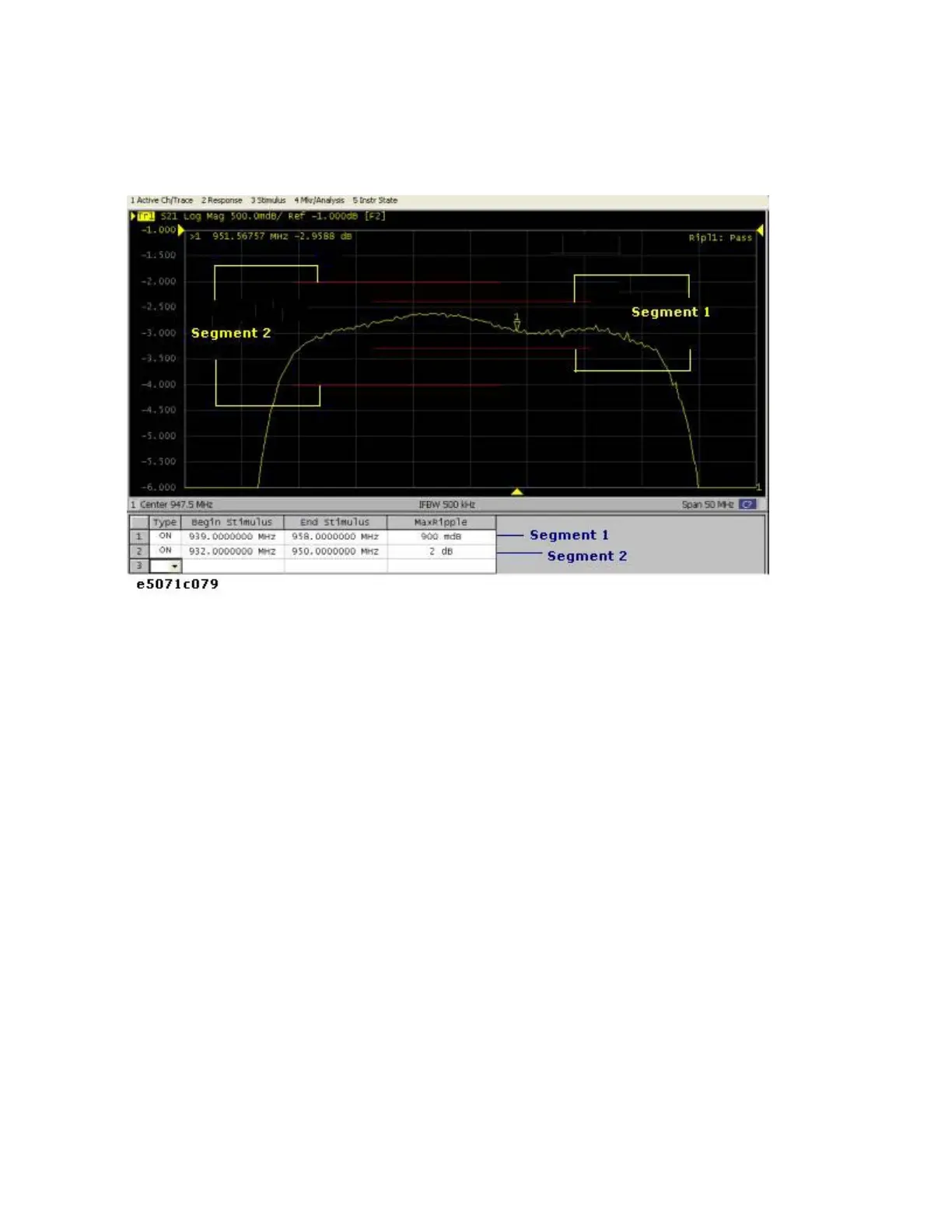

Example of ripple limit configuration
• The individual frequency bands for the ripple test can overlap
each other; in this case, the ripple limit test is performed for
each frequency band.
• Even if the E5071C's span value is set to zero, you must enter a
parameter for both Begin Stimulus and End Stimulus.
• If the data format is Smith chart or polar, the limit test is
performed for the main response value among the two marker
response values.
Saving/Recalling Ripple Limit Table
The ripple limit table can be saved in a file and recalled later for use on the
screen. The file is saved in the csv format (with the extension *.csv), and
values are saved as a character string with the unit. The csv formatted file
can also be reused in spreadsheet software made for PCs.
Follow the steps below to save/recall the ripple limit table. This operation
should be done by using the external keyboard and/or mouse.
1. Display the ripple limit table.
2. Click Export to CSV File from the Edit Ripple Limit menu to open the
dialog box. At this time, CSV Files (with the extension *.csv) is
selected as the file type.
To Next Page
