E5071C
322

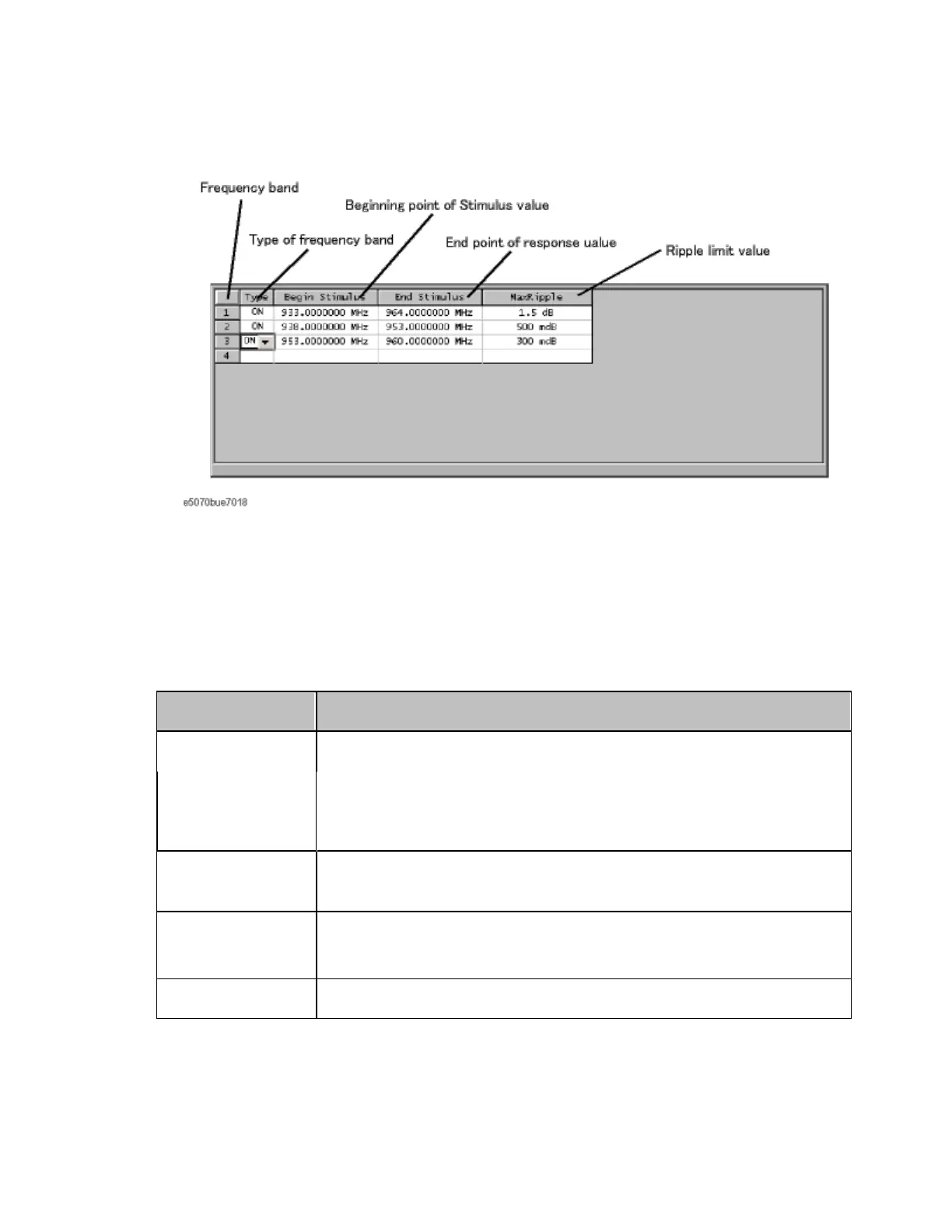

4. Click Edit Ripple Limit to display the ripple limit table shown below.
5. Create or edit the bands by using softkeys. Note that no frequency
band is provided in the ripple limit table by default. The Edit Ripple
Limit menu is also displayed, which can be used for creating or
editing the frequency band.
6. Click Add to add a frequency band to the ripple limit table and then
specify the following parameters for the frequency band:
Parameter Description
Type
Selects a frequency type, either ON or OFF.
ON Band used for the ripple test.
OFF Band not used for the ripple test.
Begin
Stimulus
Specifies the start point for the stimulus value in the
ripple test.
End Stimulus
Specifies the end point for the stimulus value in the
ripple test.
Max Ripple
Specifies the ripple limit value.
• Acceptable range for the stimulus value: -500G to +500G. If
any outranging value is specified, it will be reset to fall within
the range.
