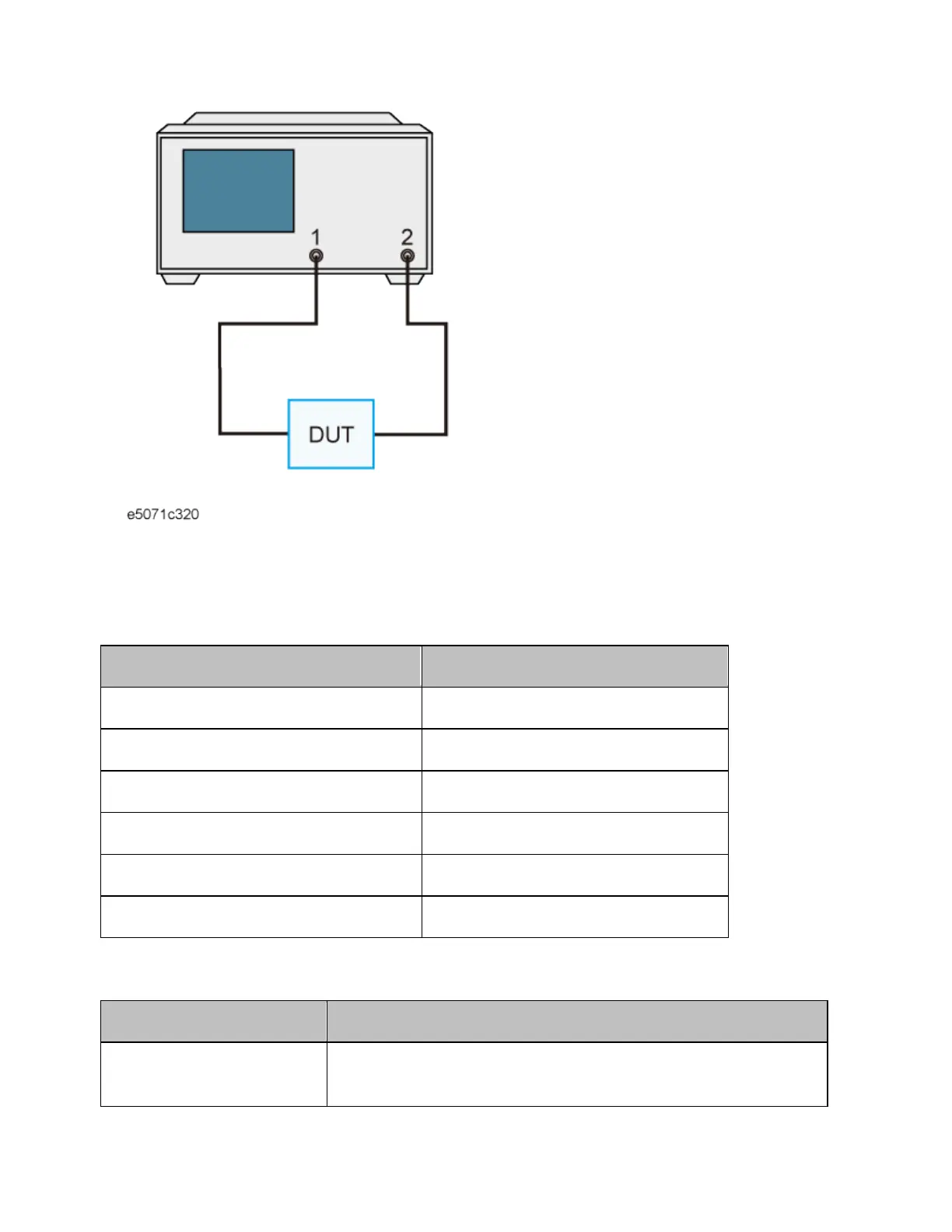

Measurement
419
2. Define the Measurement Conditions
The measurement conditions are defined by following the steps described
below.
Setup Description Key Operation
Presetting Preset > OK
Center frequency: 1.09 GHz Center > 1 > . > 0 > 9 > G/n
Frequency span: 20 MHz Span > 2 > 0 > M/u
Measurement parameter: S21 Meas > S21
Data format: Expand Phase Format > Expand Phase
Executing the Auto Scale Scale > Auto Scale
3. Execute the Calibration
The THRU response calibration is executed.
Setup Description Key Operation
Executing the THRU
response
(A THRU standard is connected instead of a
DUT) Cal > Calibrate > Response (Thru) > Thru >
To Next Page
