Electrical Characteristics
• Input Signal
• Output Signal
• Power Supply (+5 V)
Other topics about Communication with External Devices
Input Signal
All input signals are TTL compatible.
Maximum rate input voltage -0.5 V to 5.5 V
Input voltage
High level 2.0 V to 5.0 V
Low level 0 V to 0.5 V

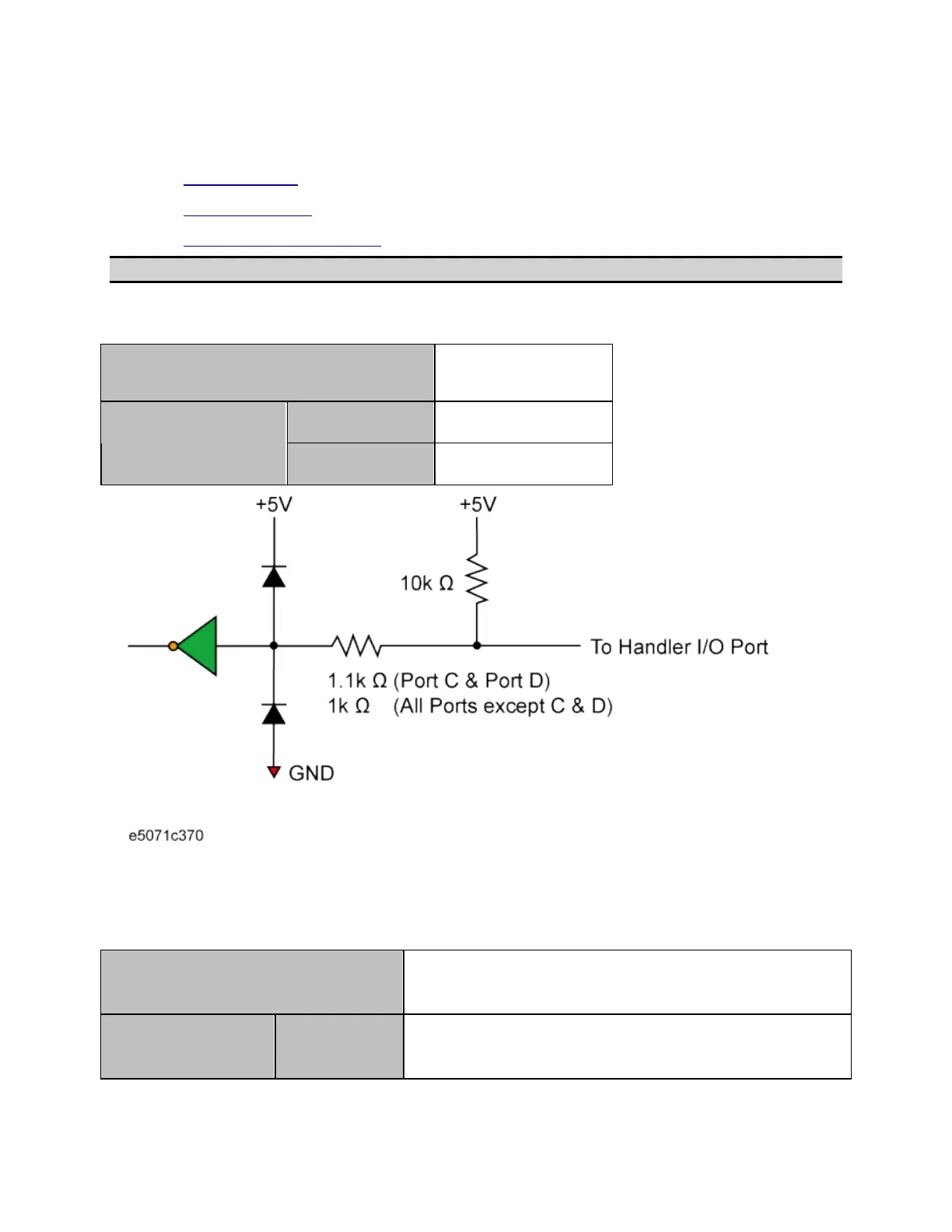

Output Signal
All output signals are TTL compatible.
Maximum rate output
current
-10 mA to 10 mA
Output
current
High
level
-5 mA
