Agilent Technologies E5071C User Manual

Measurement
77
The procedure for setting the graph layout is as follows:
1. Press Channel Next or Channel Prev to select the channel for which
you want to set the graph layout.
2. Press Display > Allocate Traces.
3. Press the desired softkey to select the graph layout shown below.

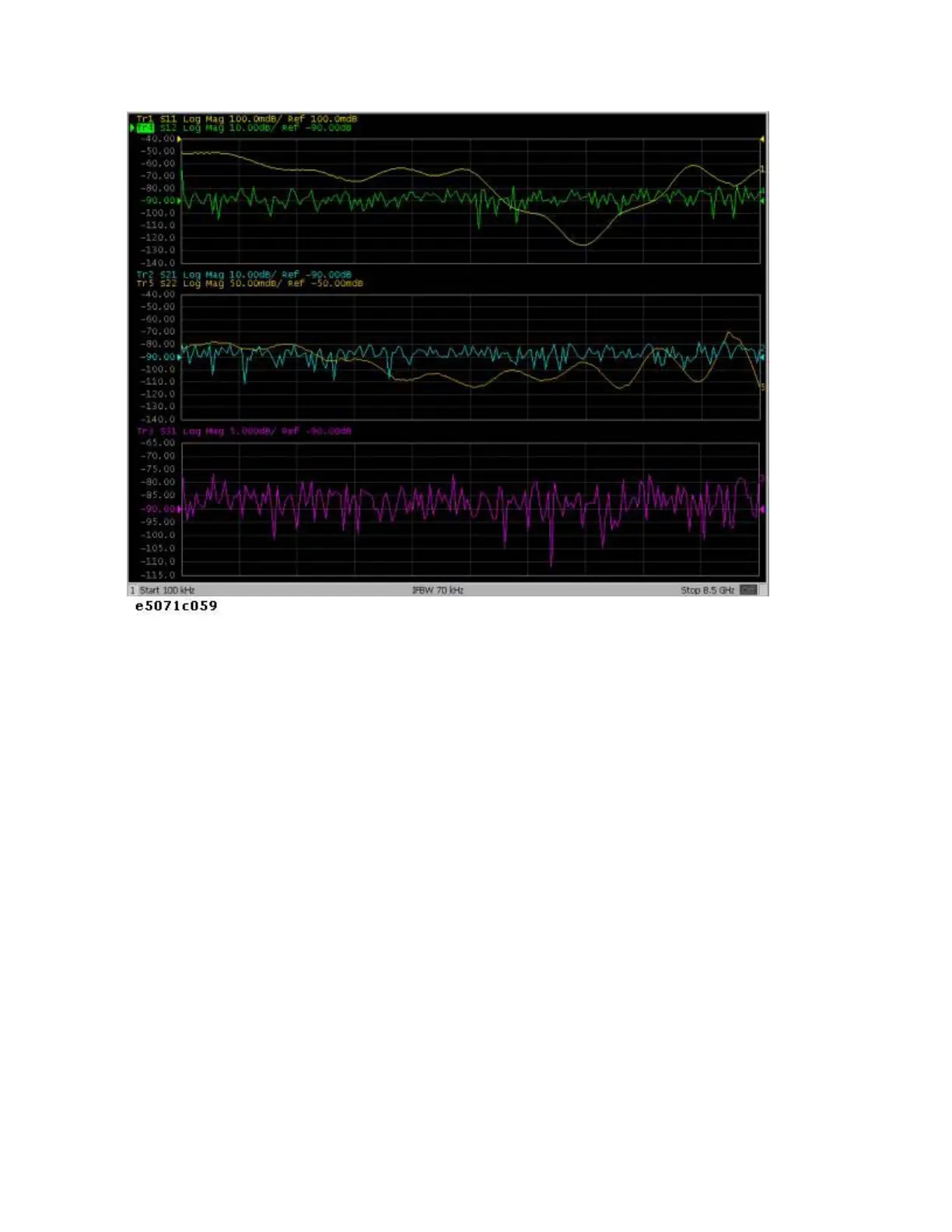

Graph Layout
