Measurement
75
setting of the window layout determines the number of channels displayed
on screen.
• The execution of measurement for each channel does not
depend on how the channel is displayed (channels that are not
displayed can be measured). For information on executing
measurement for each channel (trigger mode and trigger
source), refer to Making Measurements.
The procedure for setting the window layout is as follows:
1. Press Display key > Allocate Channels.

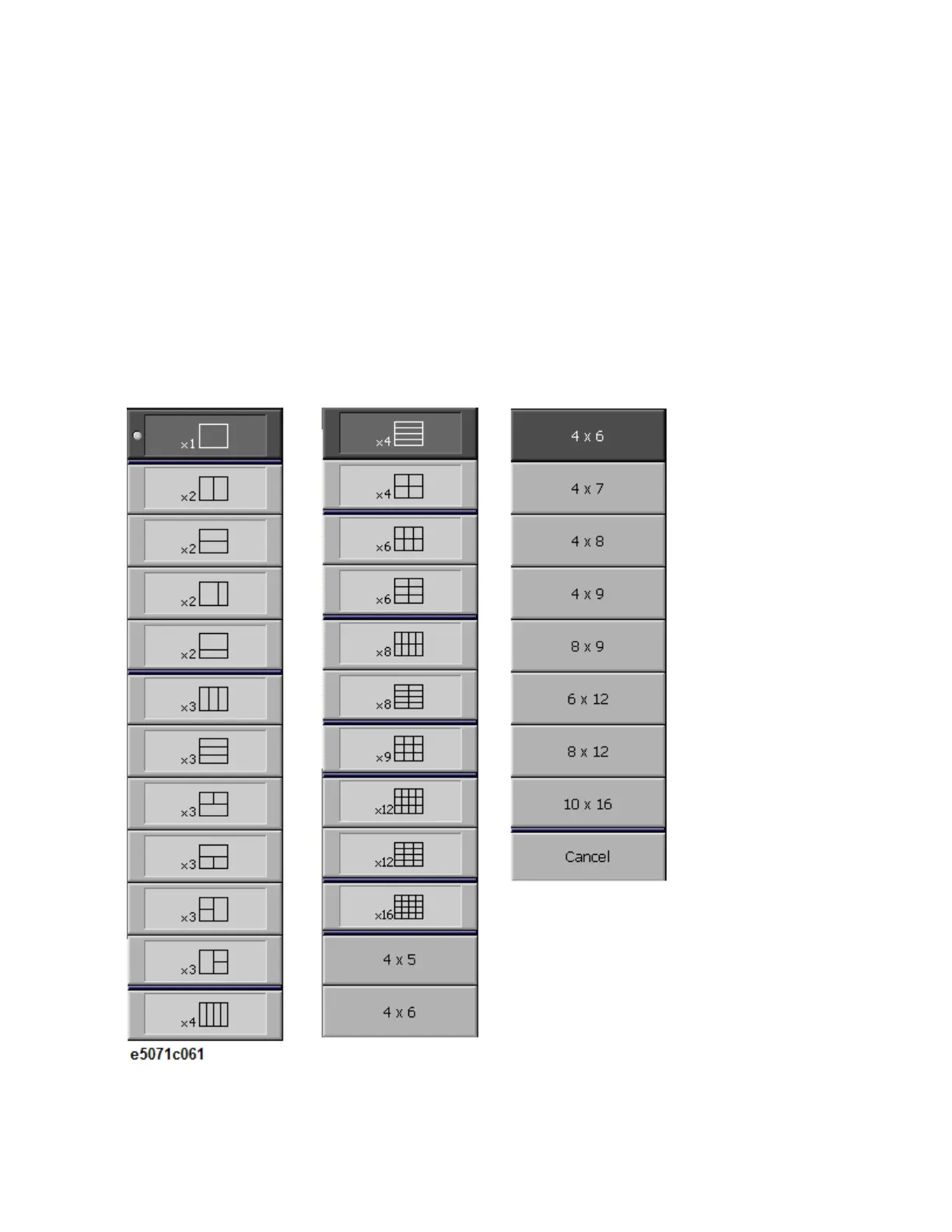

2. Press the desired softkey to select the window layout shown below.
Windows Layout
• From Firmware revision A.09.10, channel display configuration
of 10×16 is added.
To Next Page
