Performing Parameter Conversion of Measurement Results
• Overview
• Procedure
Other topics about Data Analysis
Overview

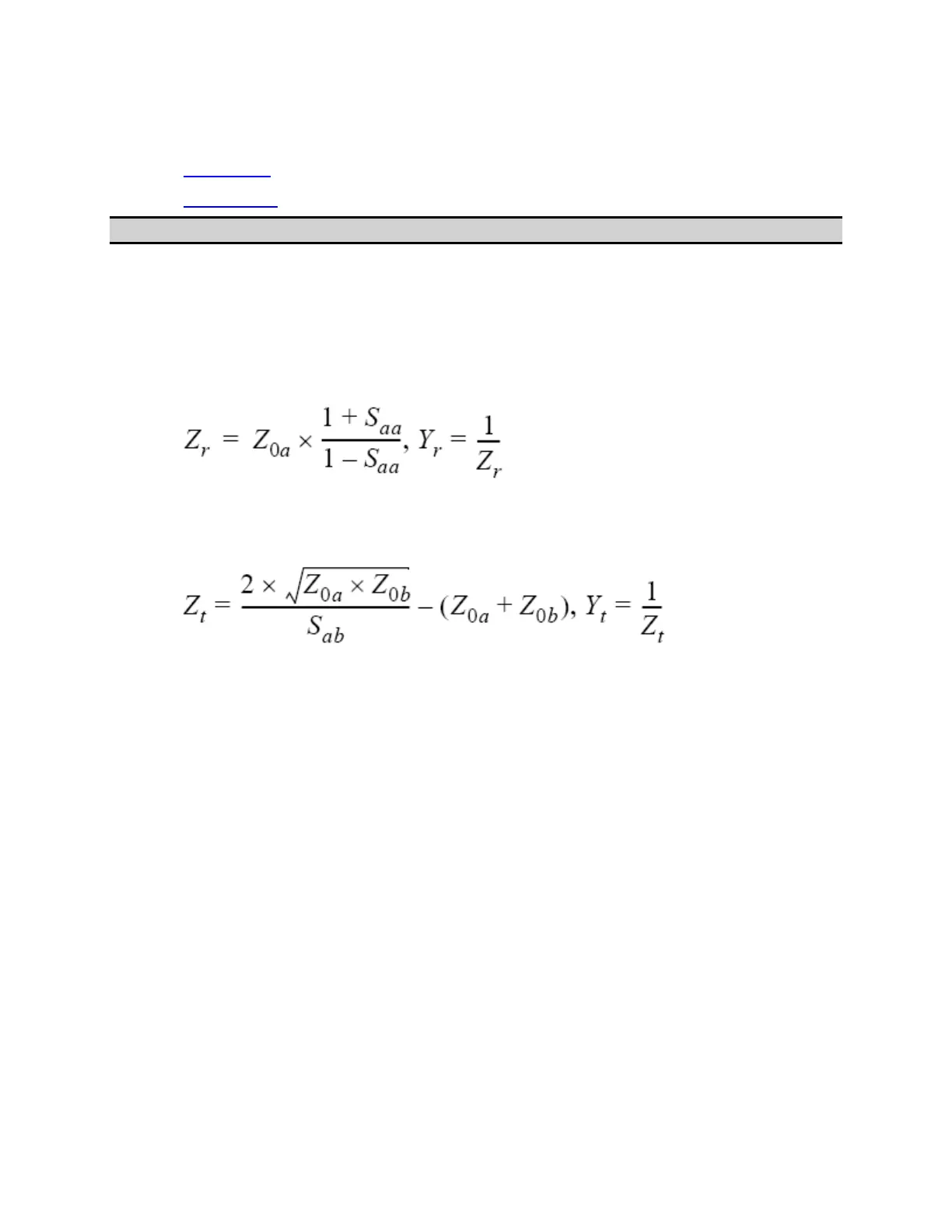

You can use the parameter conversion function to convert the measurement
results of the S-parameter (S
ab
) to the following parameters.
• Equivalent impedance (Z
r
) and equivalent admittance (Y
r
) in
reflection measurement
• Equivalent impedance (Z
t
) and equivalent admittance (Y
t
) in
transmission measurement
• Inverse S-parameter (1/S
ab
)
where:
Z
0a
: Characteristic impedance of port a
Z
0b
: Characteristic impedance of port b
• Z/Y Transmission Shunt
