E5071C
868

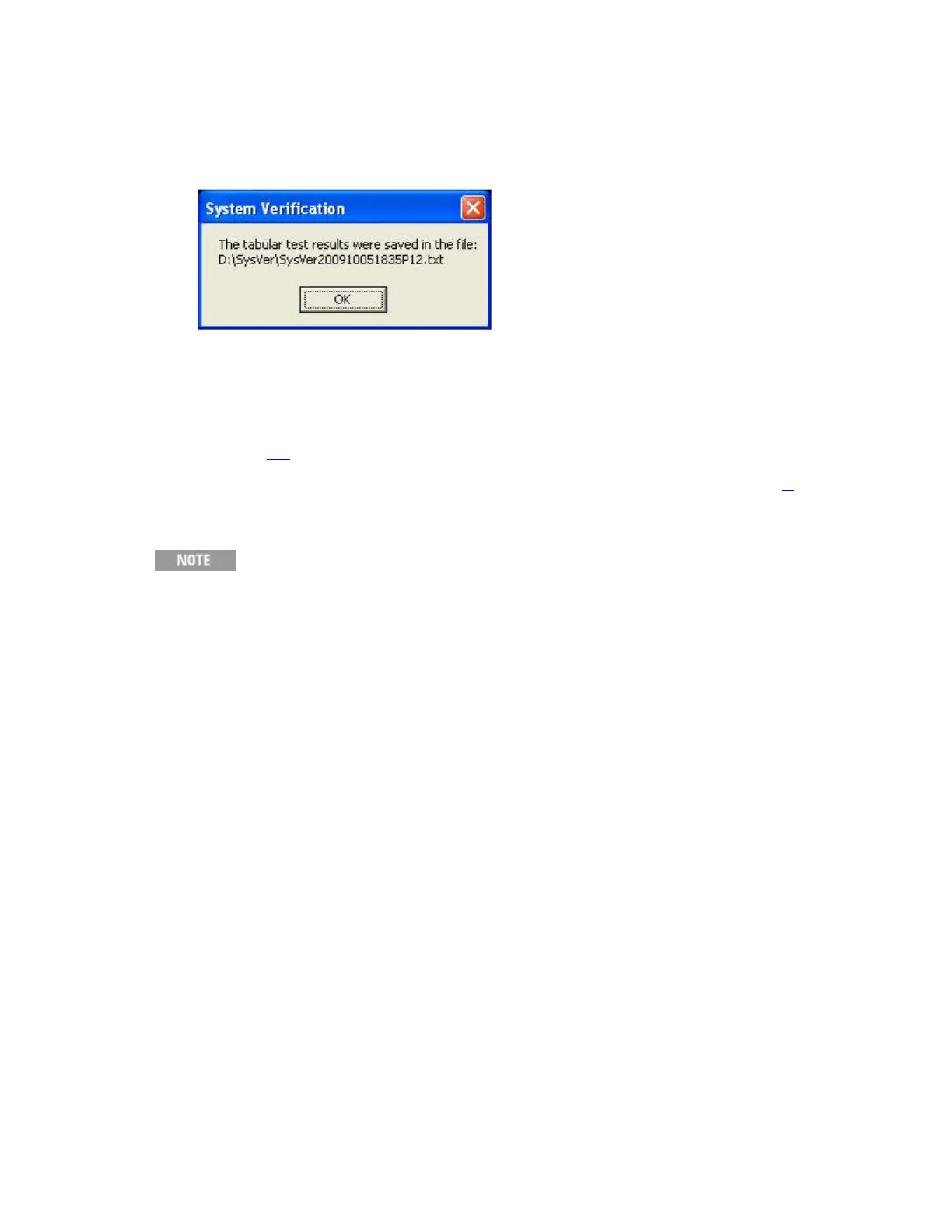

a. If the File Tabular Data is selected as the Outputs option in the
Run tab, the following dialog is displayed. If it is not selected,
this step is skipped.
b. Click OK to save the result into the file as shown in the dialog
box.
16. If both pairs (1&2 and 3&4) are selected under Measure Ports
option of Configure tab for 4 port E5071C, follow the procedure from
the step 10 onwards for one pair, then repeat them for another pair.
17. If only one pair is selected, follow the procedure from step 5
onwards.
If the System Fails the Verification Test
Inspect all connections. Do not remove the cable from the
E5071C test port. This will invalidate the calibration that you have
done earlier.
1. Repeat this verification test. Make good connections with correct
torque specifications for each verification device.
2. Disconnect, clean and reconnect the device that failed the verification
test. Then measure the device again.
3. If the analyzer still fails the test, check the measurement calibration.
4. Refer to the graphic below, for additional troubleshooting steps.
