Measurement
459
Determining Characteristics After Adding a Matching Circuit
• Overview
• Using Matching Circuit Function
Other topics about Fixture Simulator
Overview

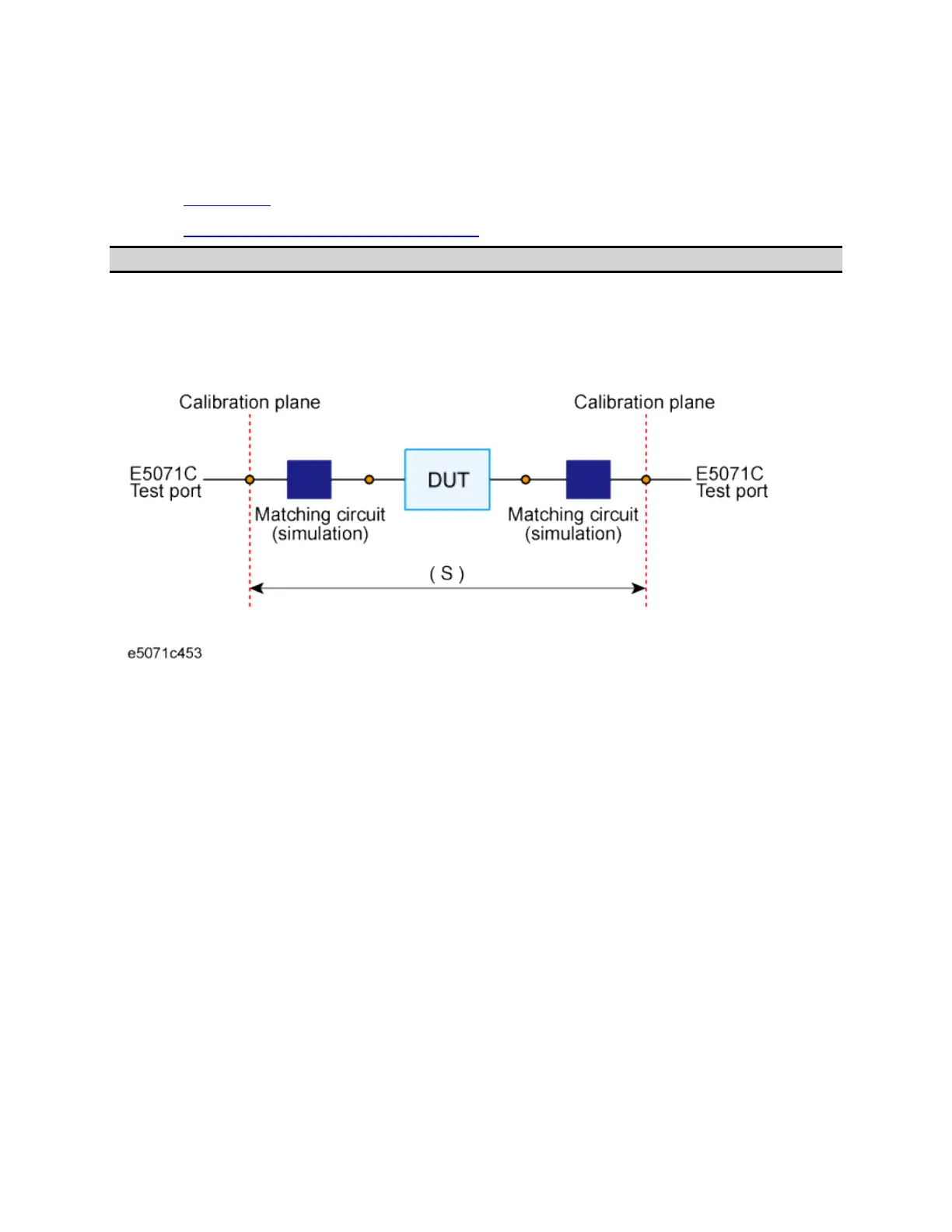

Using the matching circuit embedding function, you can easily obtain the
resulting characteristics after adding a matching circuit for each test port.
Matching circuit function
Define the matching circuit to be added by one of the following methods:
• Select one of the five predetermined circuit models and specify the
values for the elements in the circuit model.
• Use a user file (in two-port Touchstone data format) that defines the
matching circuit to be added.
The circuit models used for defining matching circuits are shown below.
Circuit models for defining matching circuits
