Agilent Technologies E5071C User Manual

E5071C
460

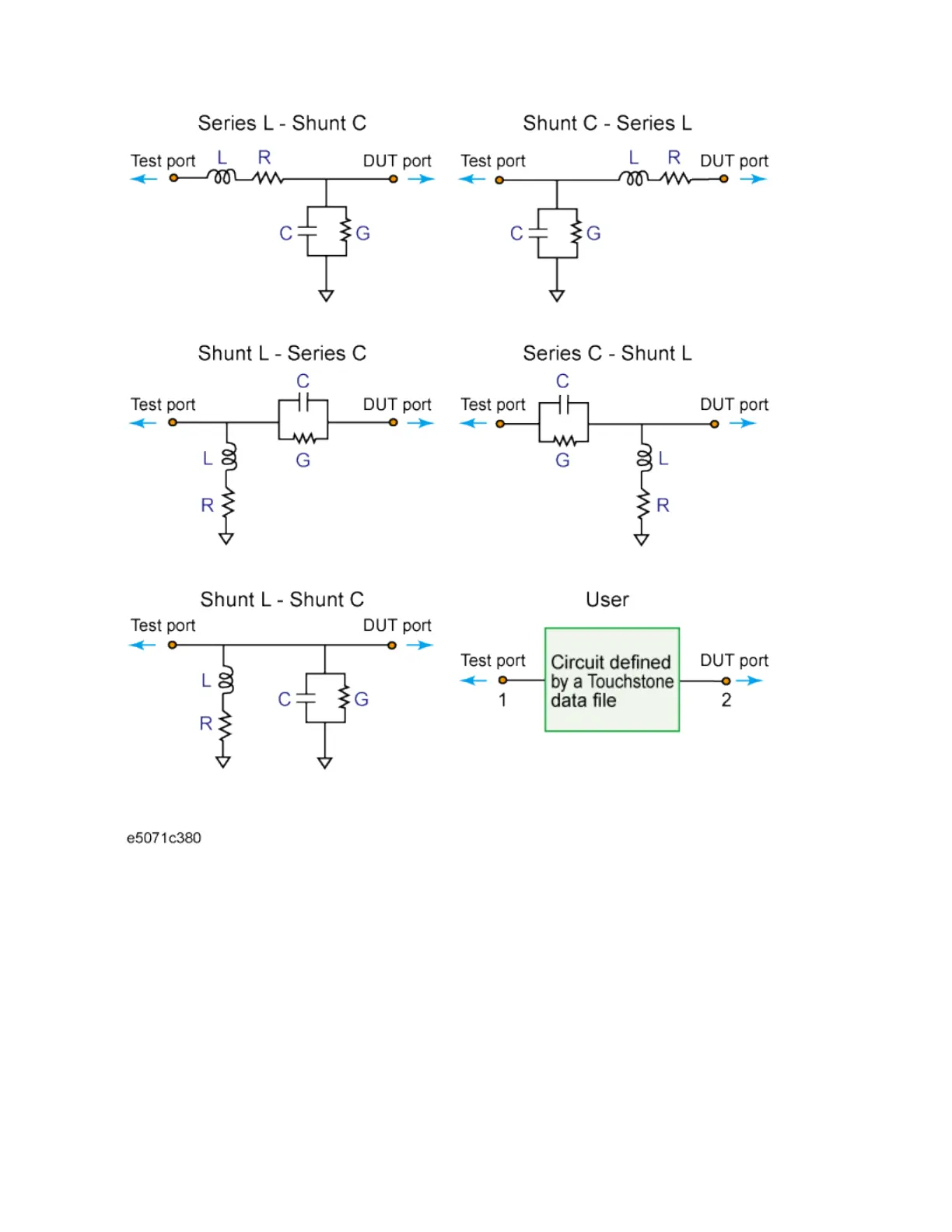

• In the 2-port matching circuit embedding or the 2-port network
de-embedding feature, if the normalized impedance value
specified in the user file (2-port Touchstone data file) is different
from the port reference impedance setting value of the
analyzer, it is automatically converted to adapt to the analyzer
setting.
When a 2-port Touchstone data file is read in, data for up to
3202 frequency points are read in using interpolation according
to the measurement frequency point setting of the analyzer. If
