Measurement
317

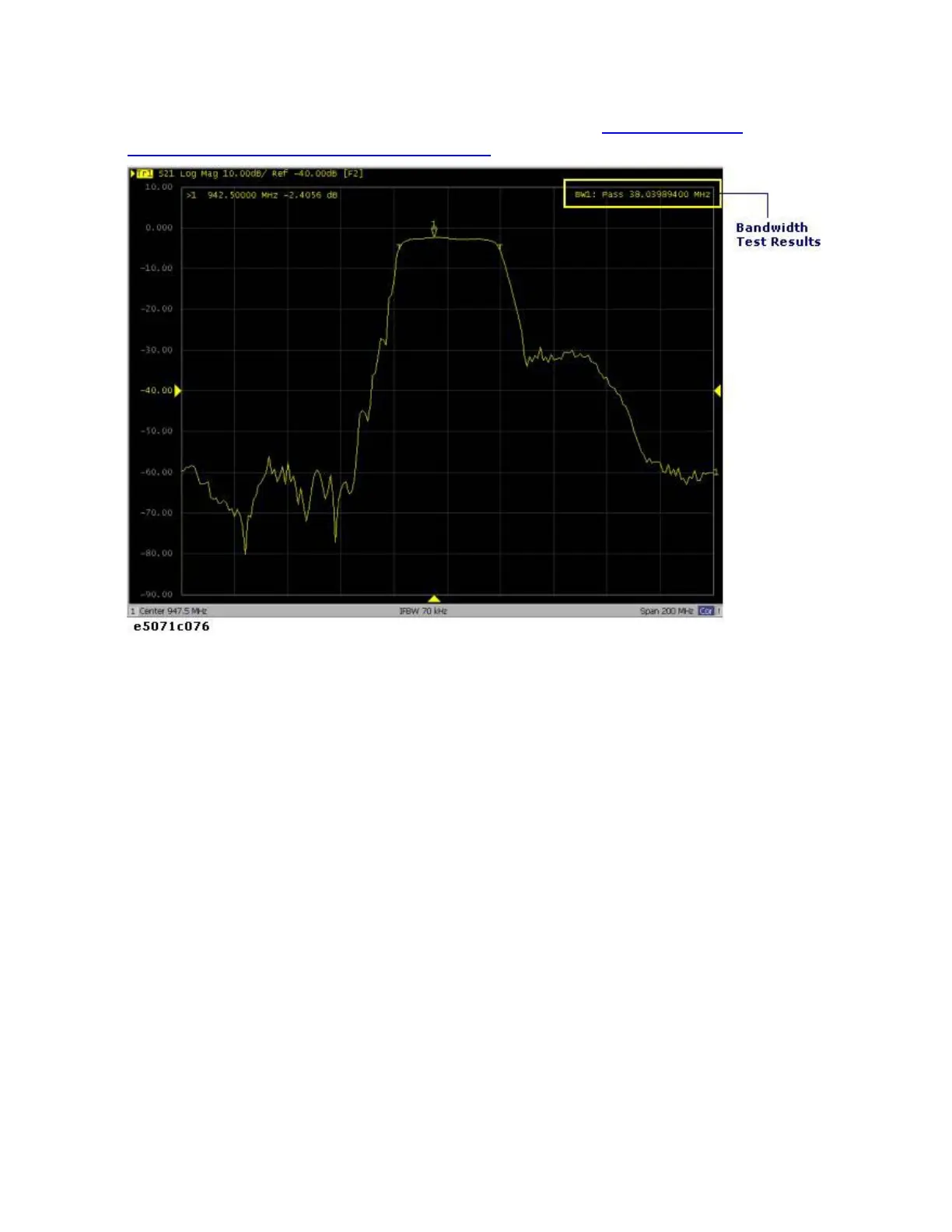

For information on how to display the results, see Turning On/Off
Bandwidth Test and Displaying Results.
Test Results for Channel
If any channel is unsatisfactory, the message will be displayed as shown in
Judgment result of channels. (It will be judged as failed if one or more
failed traces are found for the limit test, ripple test, or bandwidth test
within the channel.)
You can also specify this On/Off setting from the Fail Sign, which is
provided in the limit test menu and ripple test menu. From the bandwidth
test menu, follow the steps below to turn it on/off.
1. Press Analysis key.
2. Click Bandwidth Limit.
3. Click Fail Sign. This menu toggles between on and off.
In addition to the screen, the following features also let you confirm the
test results:
• Beep notifying the result was unsatisfactory
• Status register
Bandwidth Test Setup
