Quick Start
47

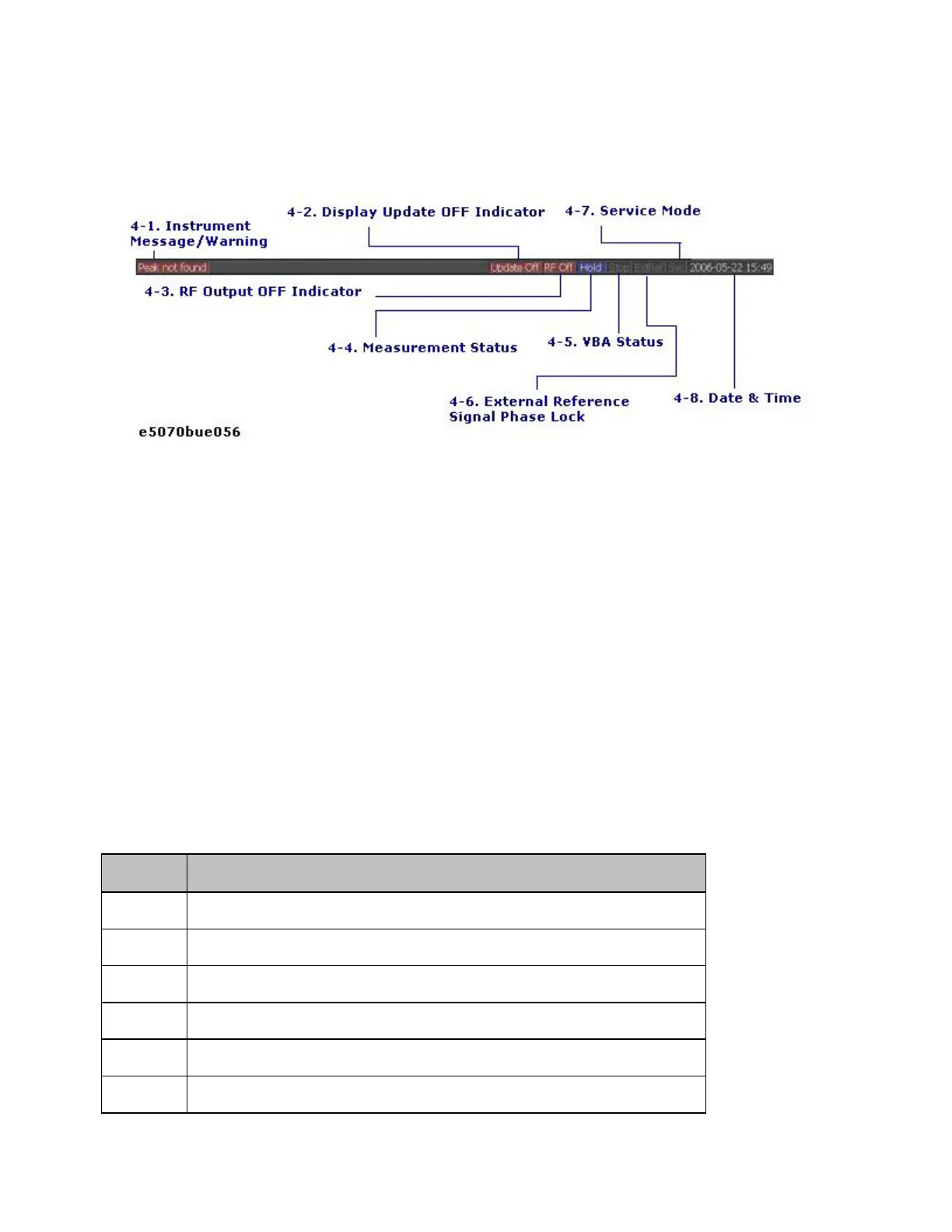

Instrument Status Bar
The instrument status bar displays the status of the entire instrument.
4-1. Instrument Message/Warning
Displays instrument messages and warnings. Instrument messages are
displayed in gray and warnings in red. For the meanings of the instrument
messages and warnings, see Troubleshooting.
4-2. Display Update OFF Indicator
When updating of information displayed on the LCD screen is turned off,
this indicator is displayed.
4-3. RF Output OFF Indicator
When RF signal output is turned off, this indicator is displayed.
4-4. Measurement Status
Displays the measurement status of the E5071C.
Value Description
Setup
Setup for measurement in progress
Hold
Measurement on hold (idling)
Init
Measurement being initialized
Man
The trigger source is set to "Manual" and waiting for trigger.
Ext
The trigger source is set to "External" and waiting for trigger.
Bus
The trigger source is set to "Bus" and waiting for trigger.
To Next Page
