Agilent Technologies E5071C User Manual

E5071C
1108
Low
level
3 mA

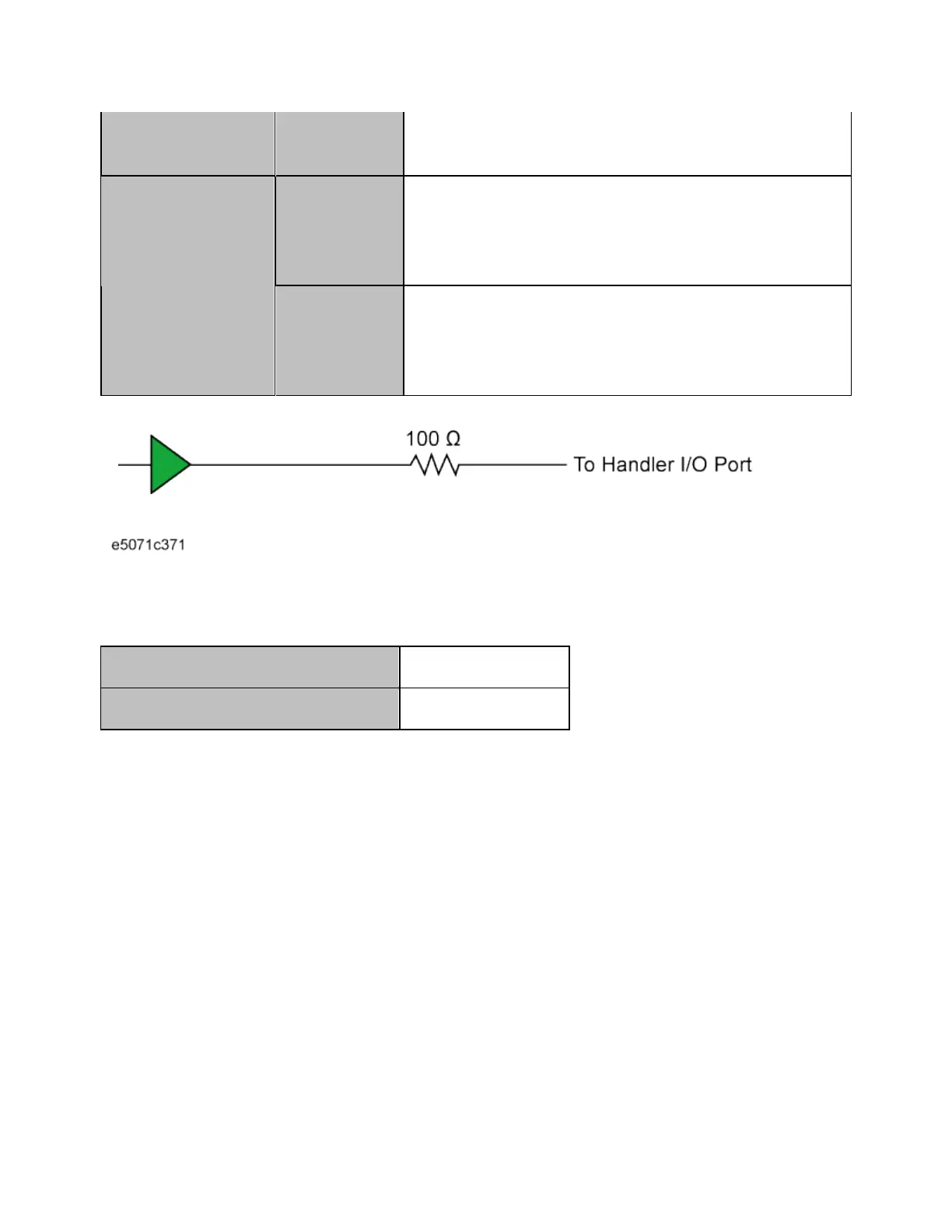

Output
voltage
High
level
2.0 V to 3.3 V (when output current is
from -5 mA to 0 mA)
3.20 V (when output current is -1 mA)
2.75 V (when output current is -5 mA)
Low
level
0 V to 0.8 V (when output current is from
0 mA to 3 mA)
0.25 V (when output current is 1 mA)
0.55 V (when output current is 3 mA)
Power Supply (+5 V)
The following table shows electrical characteristics of +5 V power supply
for external instruments.
Output voltage 4.5 V to 5.5 V
Maximum output current 100 mA
