The times of T1 and T2 are the same as those when the point trigger
function is off. For more information, see Timing chart of I/O Port
Signal(Point trigger function:off).

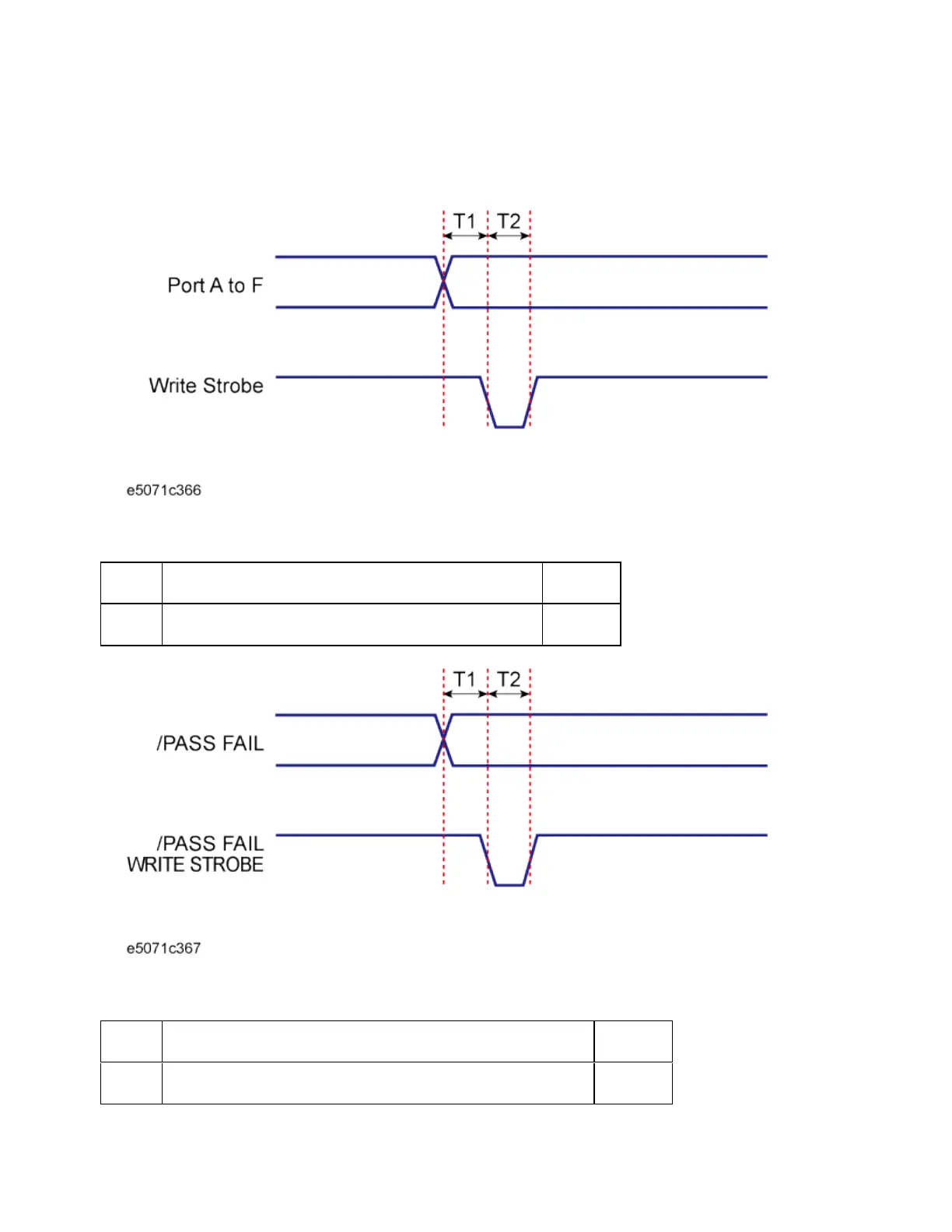

Timing Chart of Data Output and Write Strobe Signal
T1 Response time of write strobe signal 1 µs
T2 Pulse width of write strobe signal 1 µs
Timing Chart of Limit Test Result Output and Write Strobe Signal
T1 Response time of /PASS FAIL write strobe 1 µs
T2 Pulse width of /PASS FAIL write strobe 1 µs
