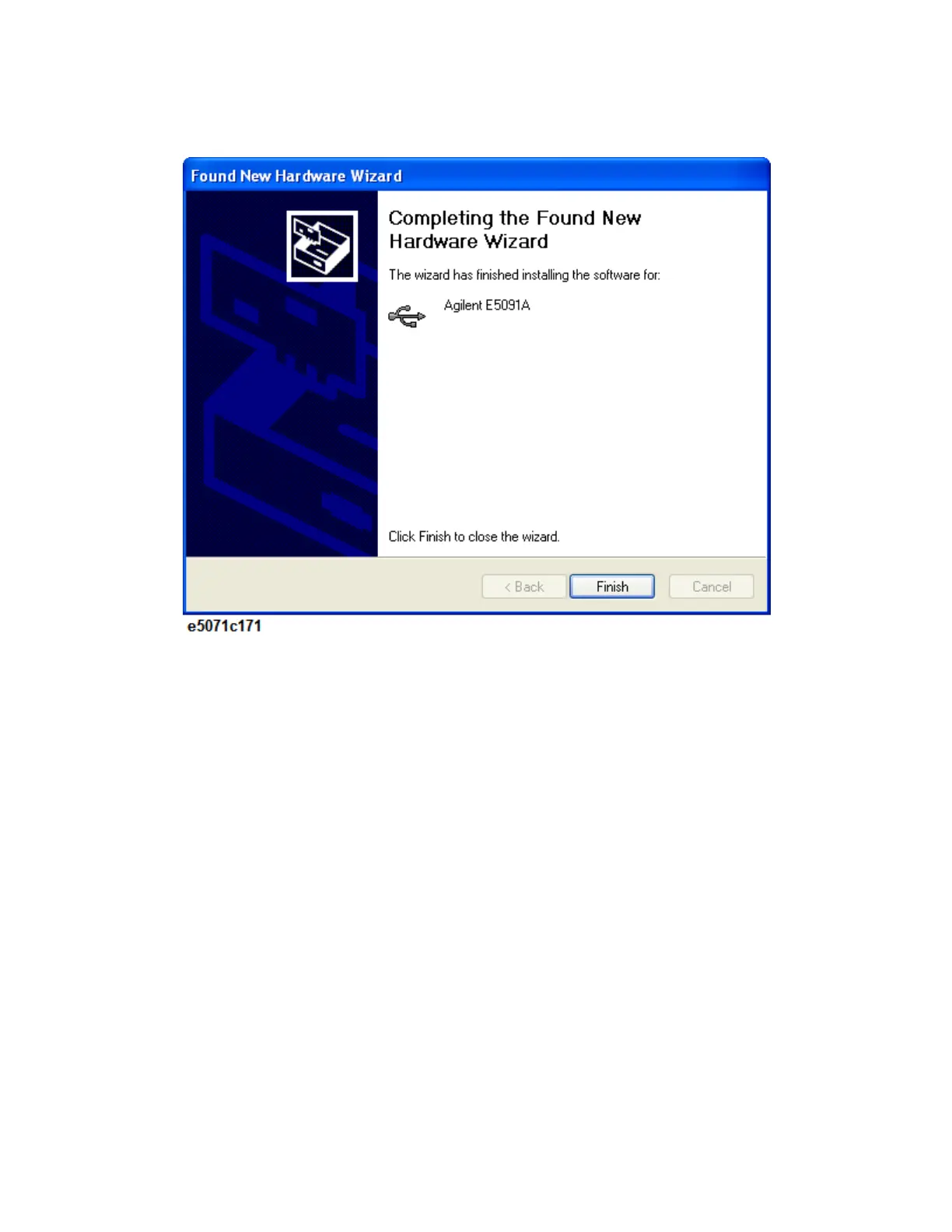

9. Click Finish.
10. After the E5071C detects the E5091A, the LEDs that indicate the
connected test ports remain on.
• Do not switch on/off devices connected via the USB ports (front
or rear panel) or connect/disconnect devices to the USB ports
while the E5071C is measuring with the E5091A.
• Even if you install the driver on a USB port, you will be asked to
install driver again if you connect E5091A with a different USB
port.
RF Cable Connection
Connect the type-N cables between the test ports (PORT 1 to 4) of the
E5071C and the test ports (PORT 1 to 4) of the multiport test set. Make
the connection so that the numbers of the ENA ports and the test set ports
match.
