There are two types of loss value settings: loss values at two frequency
points for a specified port, and a DC loss value. You can make these
settings at the same time for each port.
• You can set loss values channel by channel. Setting loss values
for one particular channel does not affect other channels.
1. Setting loss values
1. Press Channel Next/Channel Prev keys to activate the channel for
which you want to set loss values.
2. Press Cal key.
3. Click Port Extensions.
4. Click Extension Port n where n can be from 1 to 4.
5. Click Loss to set a loss value.
6. Click Loss1 [OFF] to toggle to Loss1 [ON] (enabled), and enter a loss
value (Loss1) and a frequency (Freq1).
7. If you want to set loss at two frequency points, press Loss2 [OFF] to
toggle to Loss [ON] (enabled), and enter a loss value (Loss2) and a
frequency (Freq2).
8. If you want to set loss values for other ports, repeat steps 4 to 6.

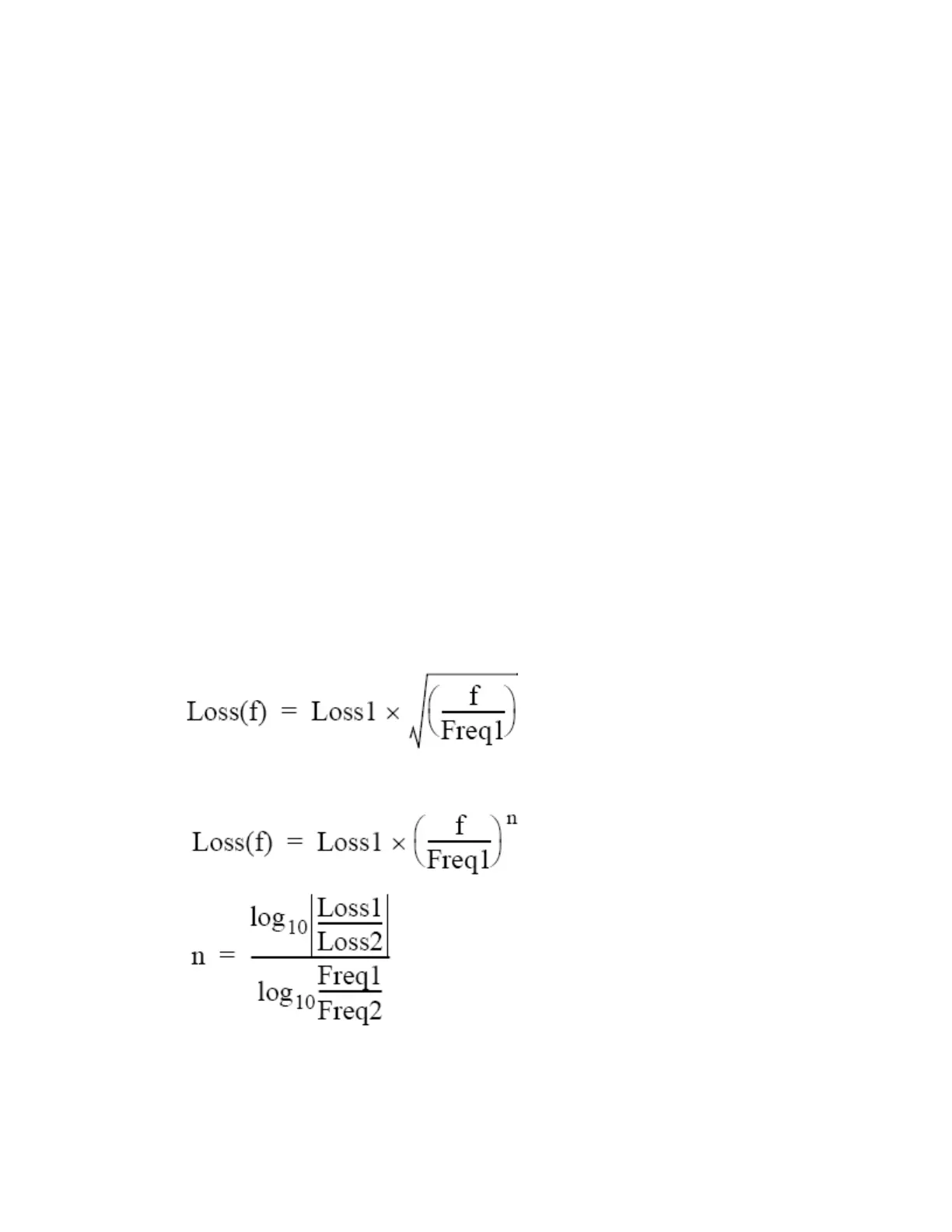

• Expression to calculate loss using Loss 1:
• Expression to calculate loss using Loss 1 and Loss 2:
• When you specify two frequency points, set the lower frequency
to Loss1, and the higher one to Loss2.
2. Setting a DC loss value
