E5071C
452
The E5071C adopts the power wave definition for its S-
parameter calculation. Reference document: "Power waves and
Scattering Matrix. K. Kurokawa"

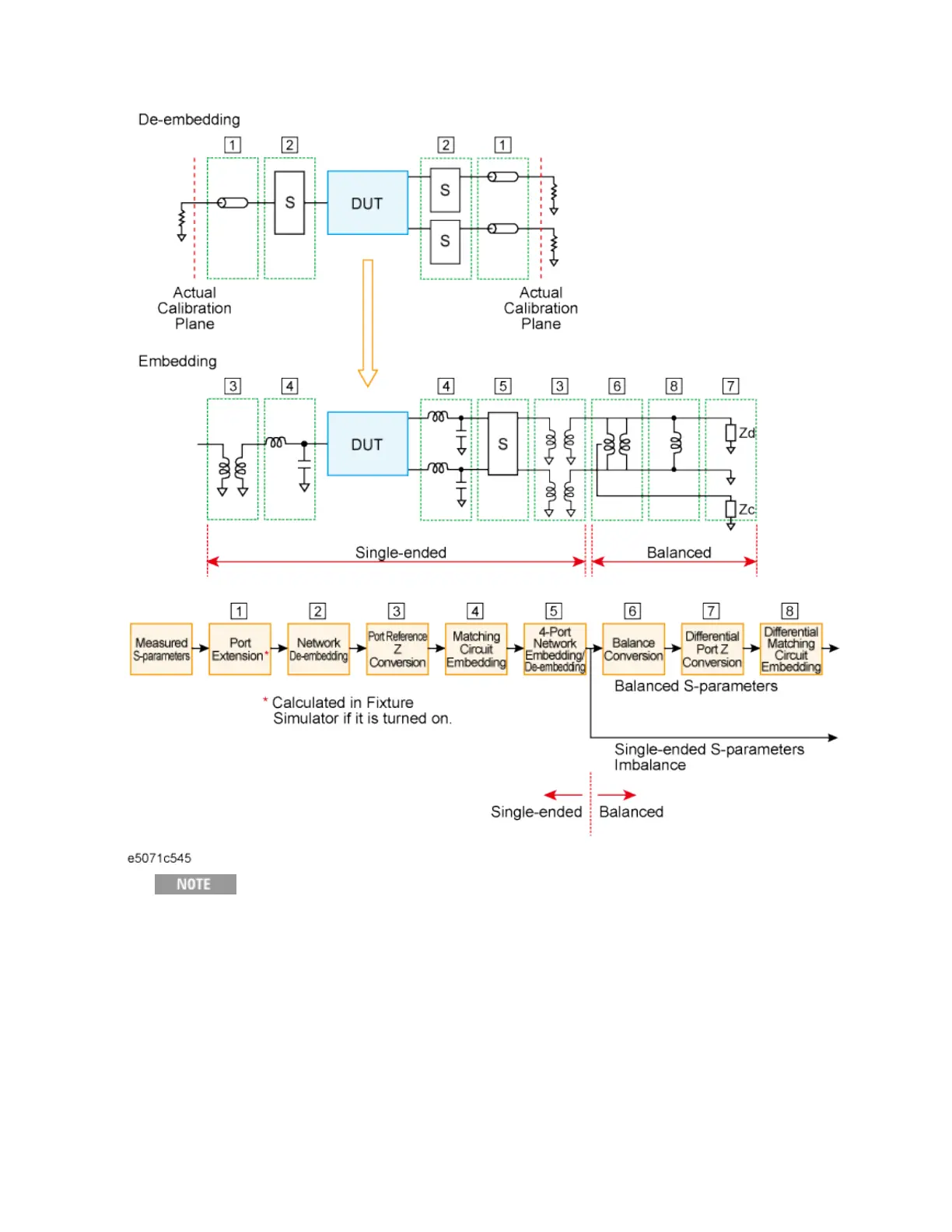

Port extension is an independent function from the fixture simulator, but if
the fixture simulator function is on, data processing is automatically
executed as a function of the fixture simulator to improve the data
processing efficiency. (Measurement result is the same as when the fixture
simulator is turned off.) Port extension moves the calibration reference
location by setting an electrical delay for a single-ended port. Port
