Measurement
473

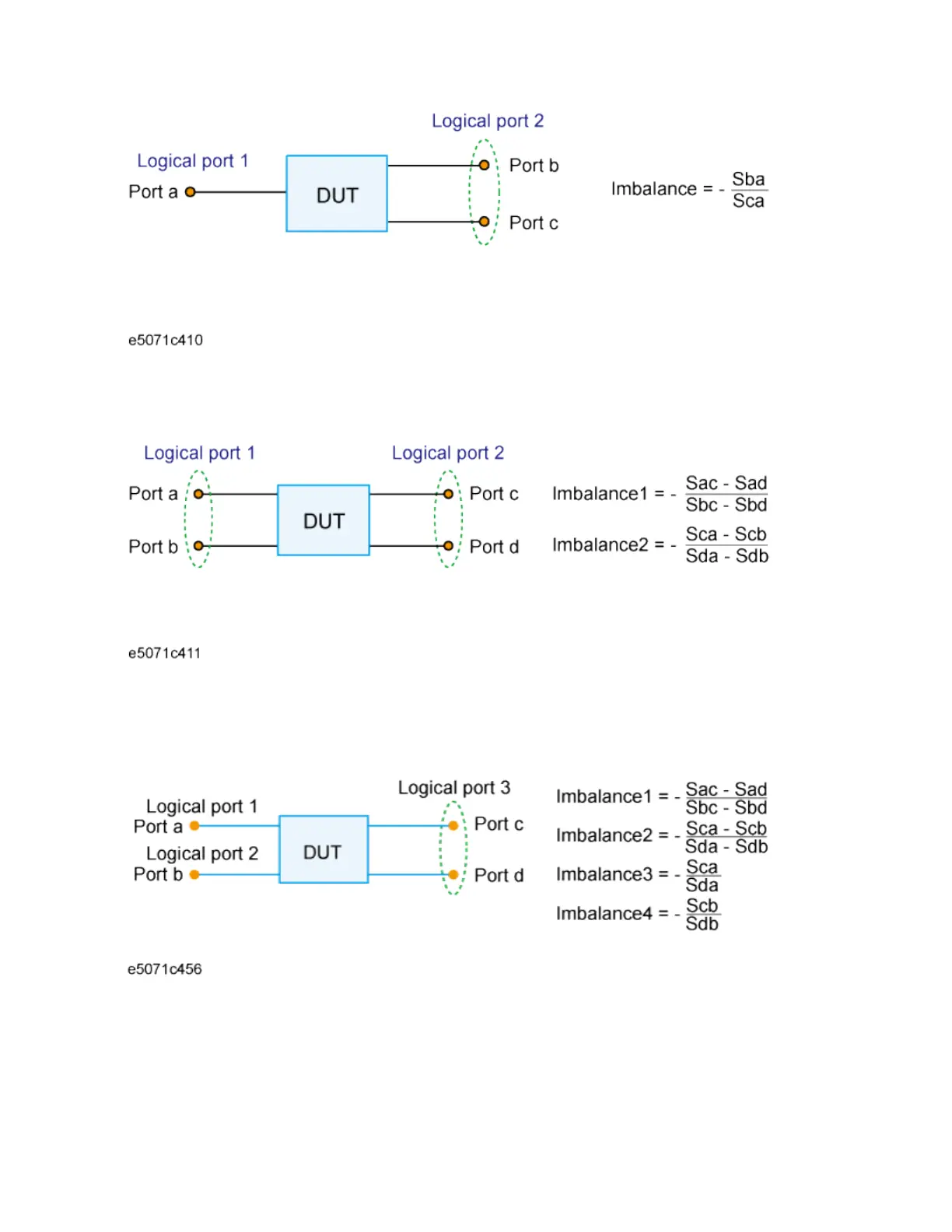

Parameter when measuring a balanced - balanced device
(Imbalance1, Imbalance2)
Parameter when measuring a single-ended - single-ended -
balanced device (Imbalance1, Imbalance2, Imbalance3,
Imbalance4)
• The balance matching circuit (Differential matching circuit
embedding) is not applied to single-ended S-parameter results.
For example, the balance matching circuit is not applied to the
