Product Information
841
flat-blade screw driver to remove it.
4. Do not attempt to unlock the key and remove the hard disk
when the power is on. Doing so will turn off the power
automatically.
• Be careful not to be hurt your hands while removing the hard
disk.

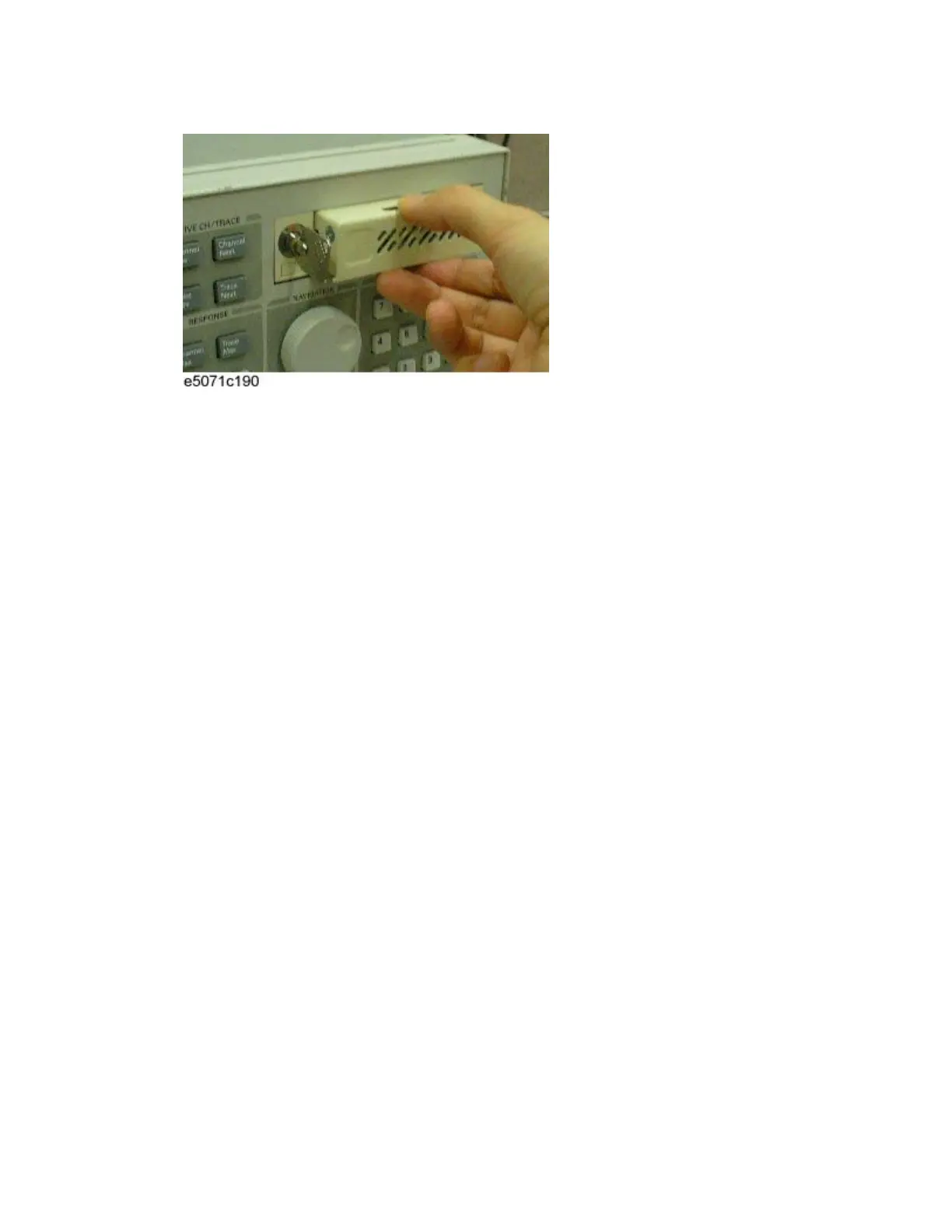

Mounting Removable Hard Disk (Type I)
Follow the steps below to mount a removable hard disk.
1. Insert the hard disk into the slot.
2. Turn the key to the left until it is locked.
3. Remove the key.
4. Turn on the E5071C.
5. The "U" is displayed at the 8 segment LED on next to the
removal hard disk when E5071C is turned on without key lock.
• The key is available to remove even in Unlocked state. Before
power on, confirm if Removable hard disk is locked completely.
Removing Removable Hard Disk (Type II)
Follow the steps below to remove a removable hard disk.
1. Turn off the power.
2. Insert the key (furnished, Agilent Part Number 5188-4426) in the
lock and turn anti-clockwise.
To Next Page
