Programming
973

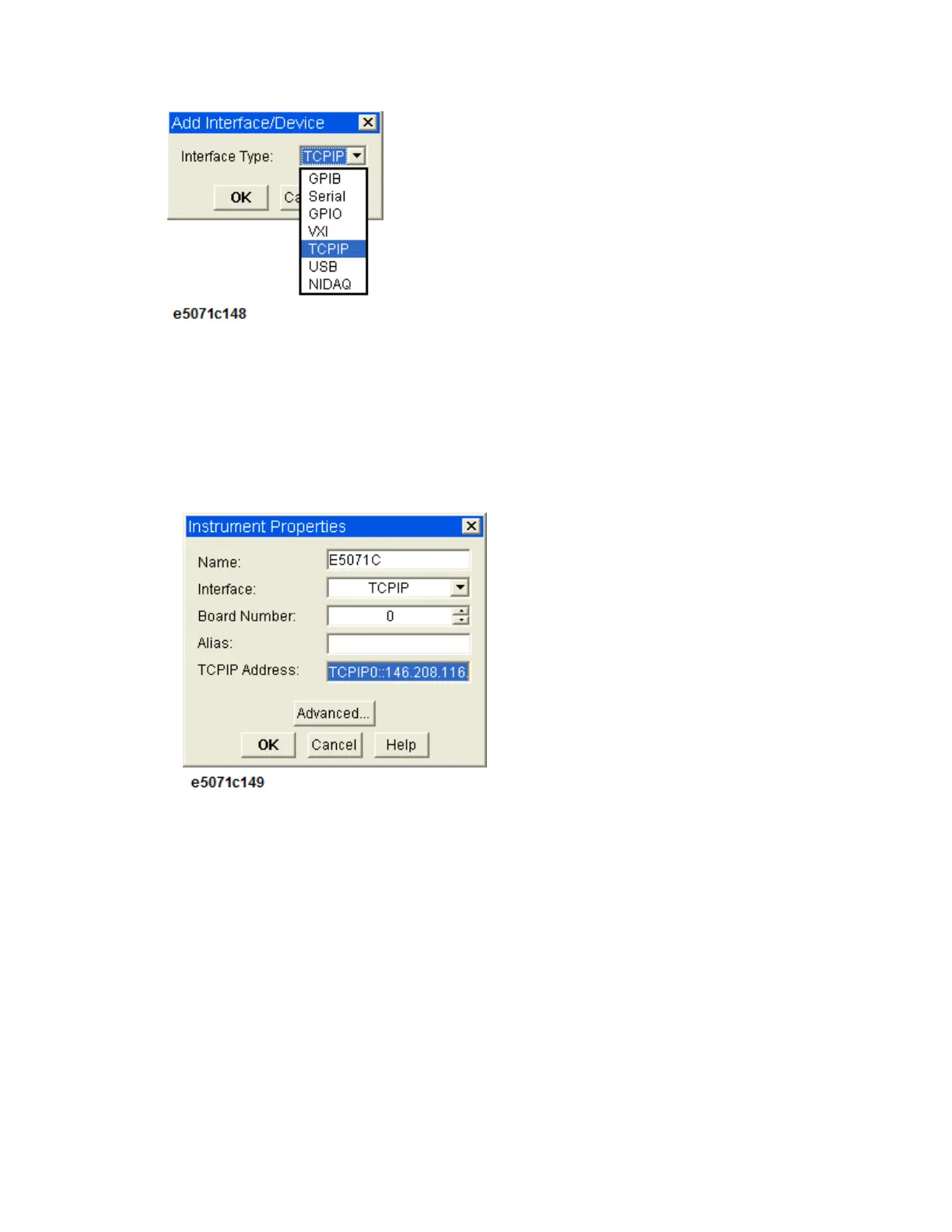

4. In Instrument Properties, type any name for the Instrument in Name
(for example: ENA or E5071C), and add TCPIP0::<IP Address> in
the TCIP Address, where <IP Address> is the IP address for E5071C.
For example, if the IP address for E5071C is 146.208.116.90, then
the value for TCPIP Address would be TCPIP0::146.208.116.90. Click
OK after entering all the parameters.
5. The Instrument manager displays the connection with E5071C.
