Programming
989

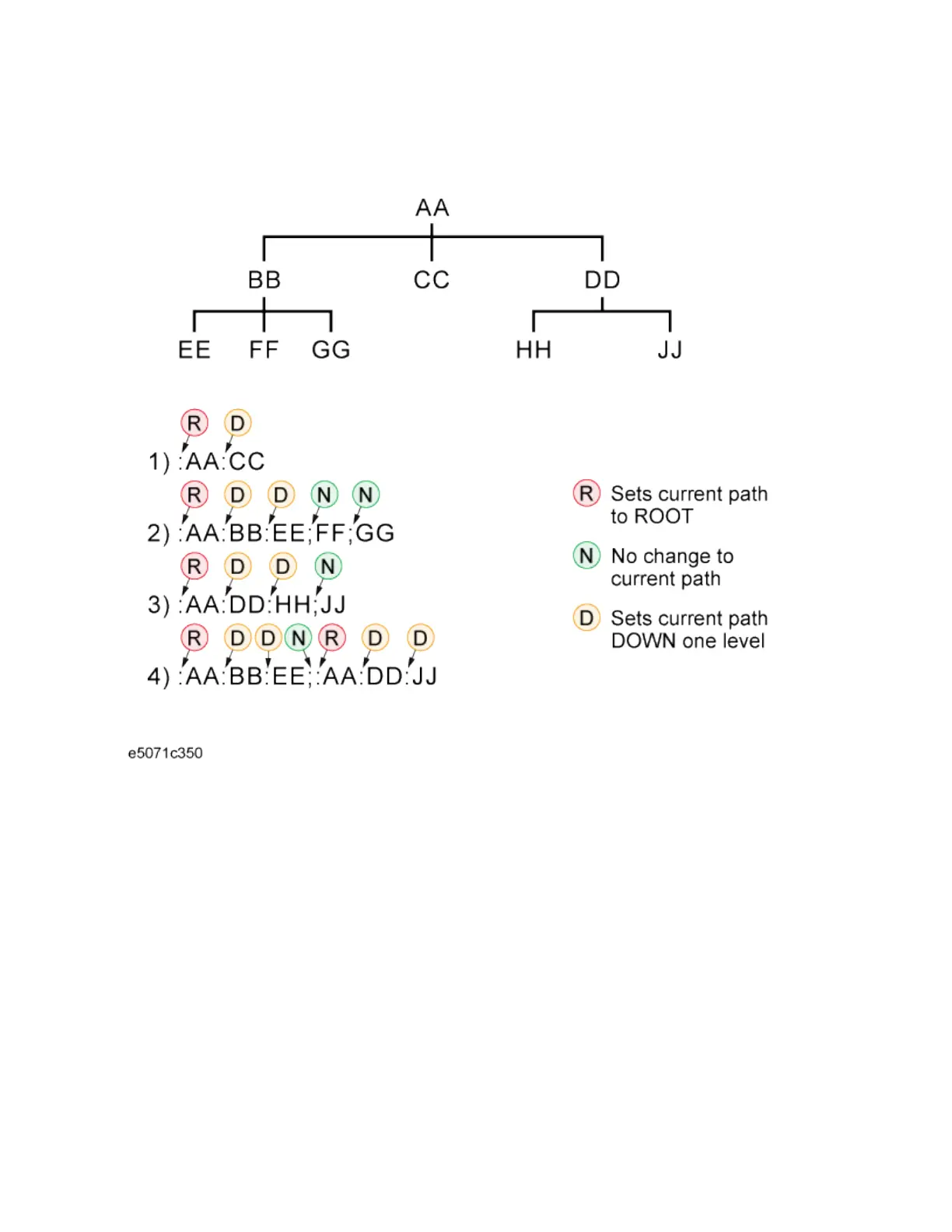

The following figure shows an example of how to use colons and
semicolons to efficiently access commands in the command tree.
Using colons and semicolons
Grammar of Messages
This section describes the grammar to send program messages via GPIB.
Program messages are messages that the user sends to the instrument
from the external controller to control the instrument. A program message
consists of 1 or more commands and their necessary parameters.
Upper/lower case sensitivity
Upper/lower case insensitive.
Program message terminator
A program message must be terminated with one of the 3 program
message terminators: <new line>, <^END>, or <new line><^END>.
<^END> indicates that EOI on the GPIB interface becomes active at the
instant when the immediately previous data byte is sent. For example, the
