Chapter 2 83
Agilent VEE Programming Techniques
General Techniques
Tip: Creating a UserObject in its edit window and then using the icon
view of the
UserObject lets you save screen space.
7. To help you keep track of the
UserObject, change the title from
UserObject to AddNoise. Double-click the title bar and enter the new
title in the properties dialog box. Figure 2-4 shows how this makes the
program easier to follow.
Tip: To get to any object’s Properties dialog box quickly, just
double-click its title bar.

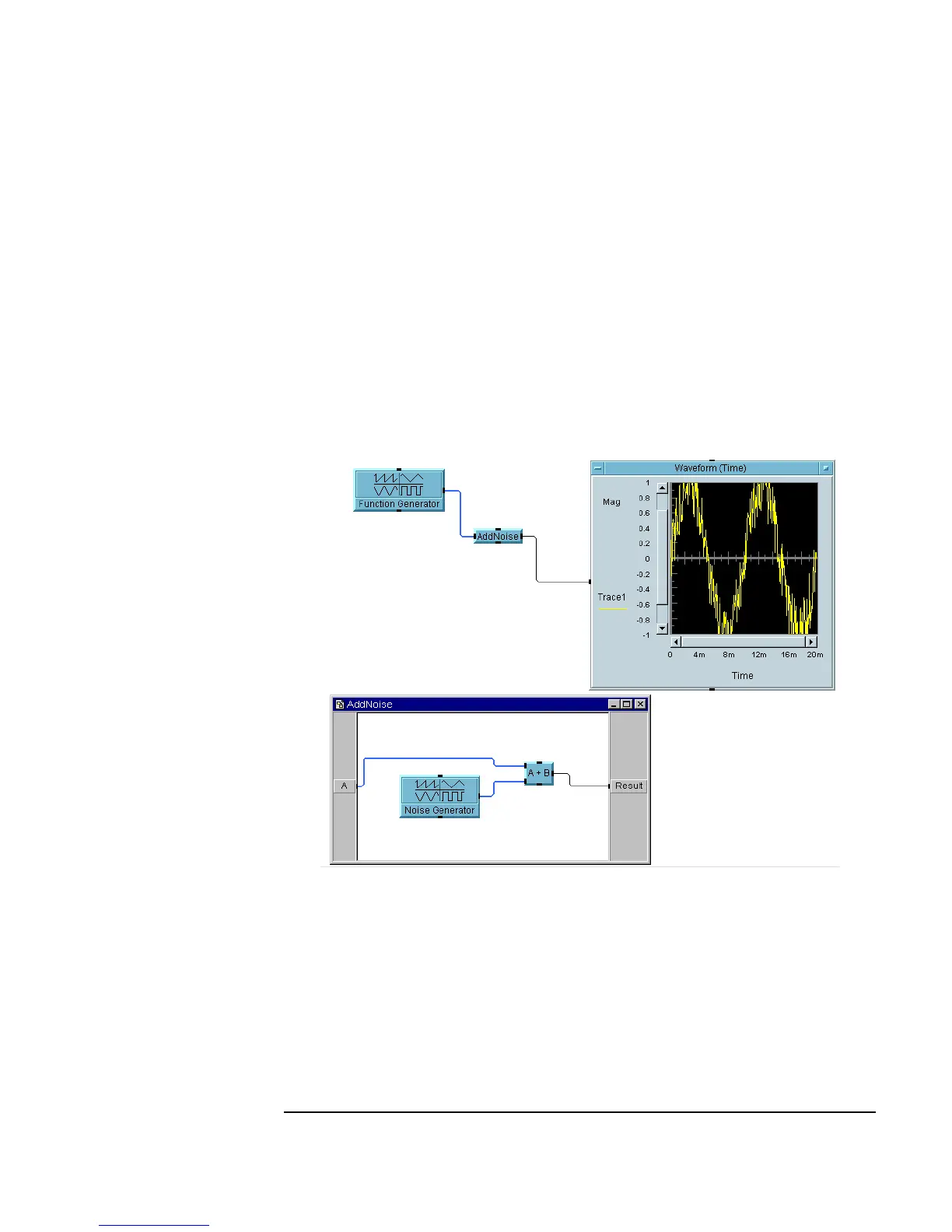

Figure 2-4. UserObject Renamed AddNoise
8. Click the Run button to display the noisy cosine wave as shown in Figure
2-5. Note that
AddNoise is minimized, and appears in icon form at the
bottom of the work space. To minimize
AddNoise, click on the minimize
button in its title bar, shown as the underline symbol
(_).
