Understanding Pins and Terminals
Editing Terminal Information
To obtain information about a terminal, double-click the label area. For
example, double-clicking
B causes the dialog box in Figure 1-22 to appear.

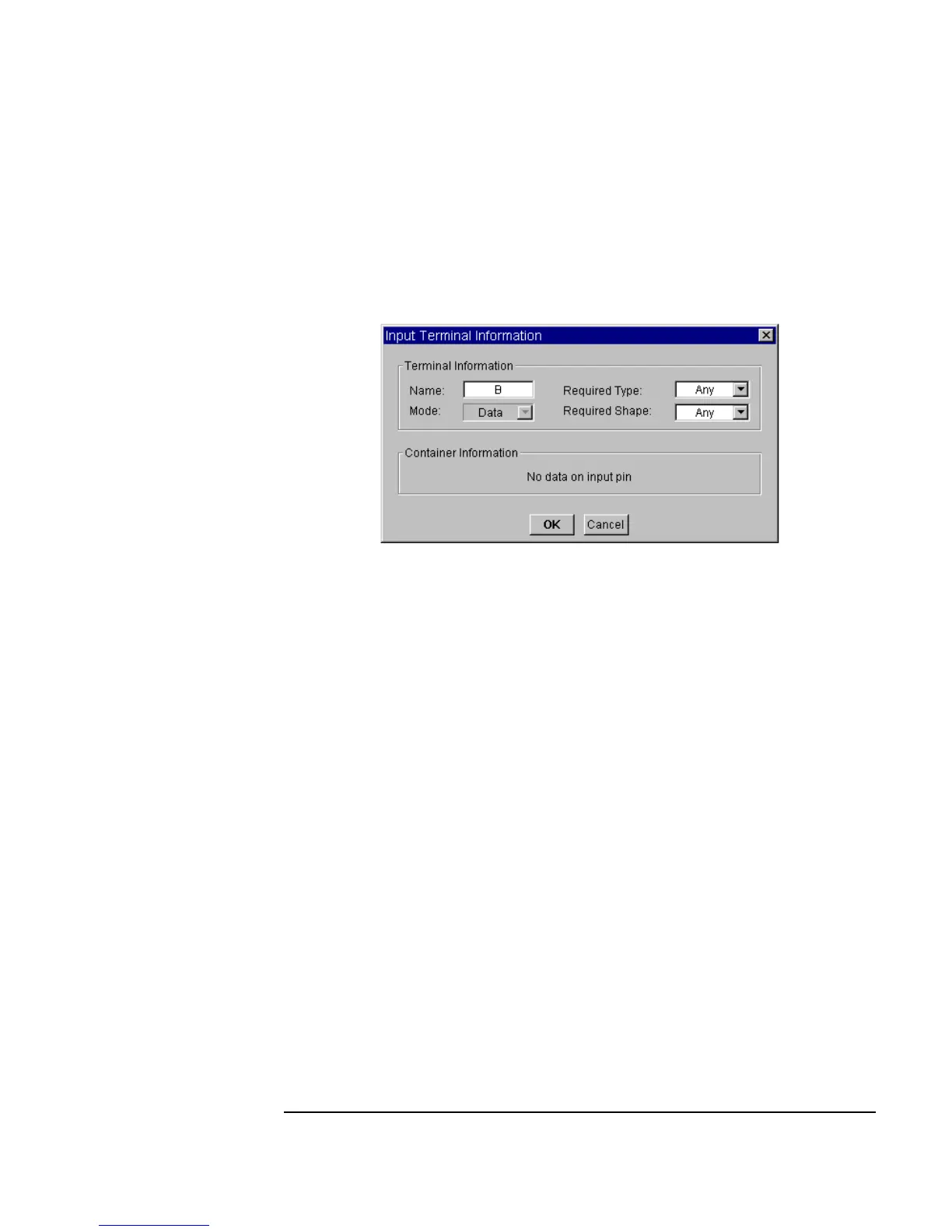

Figure 1-22. Obtaining Terminal Information
You can now edit the terminal. The dialog box has three kinds of fields:
entry field A field with a white background, but no arrow. It
becomes a type-in field when you click it. For example,
you can click
B in the Name field and rename the
terminal.
status field A field with a gray background that cannot be edited.
For example, the
Mode field cannot be edited.
selection field A field with a white background that has an arrow on
its right-hand side. Clicking the field or its arrow
displays a drop-down list. For example, if you click
Any (or the arrow) in the Required Type field, you
can select another data type from the list by clicking the
list as shown in Figure 1-23.
