54 Chapter 1
Using the Agilent VEE Development Environment
Connecting Objects to Make a Program
If the lines appear to be scrambled, use Edit ⇒ Clean Up Lines to
reroute the lines in the program.
Running a Program
5. Continuing with the same exercise, click the Run button on the toolbar to
run the program, or use
Debug ⇒ Run. The program displays a 100 Hz
Cosine wave in the
Waveform (Time) display as shown in Figure 1-26.
(Your object might have a different frequency, which is not important to
the example.)

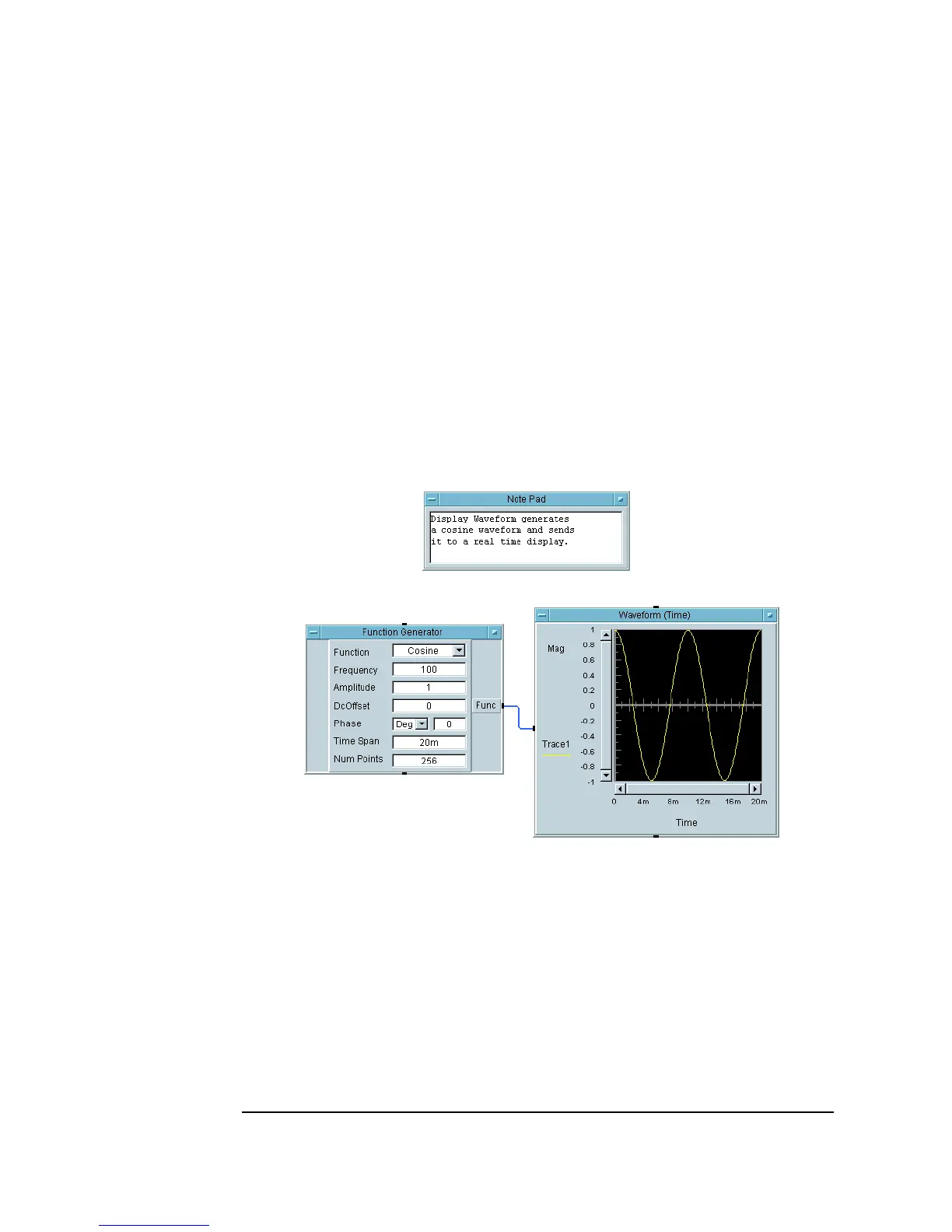

Figure 1-26. Running a Program
In addition to the Run button on the toolbar, you can use the Stop, Pause,
and Step buttons on the toolbar to control the program. If you pause a
running program, use the Resume button (same as the Run button) to
resume. You can use the
Step Into button on the toolbar to run a program
one object at a time.
