Appendix A 519
Additional Lab Exercises
Test Sequencing
Solution—Using the Test Sequencer, Step 3
Figure A-33 shows a solution to Step 3.

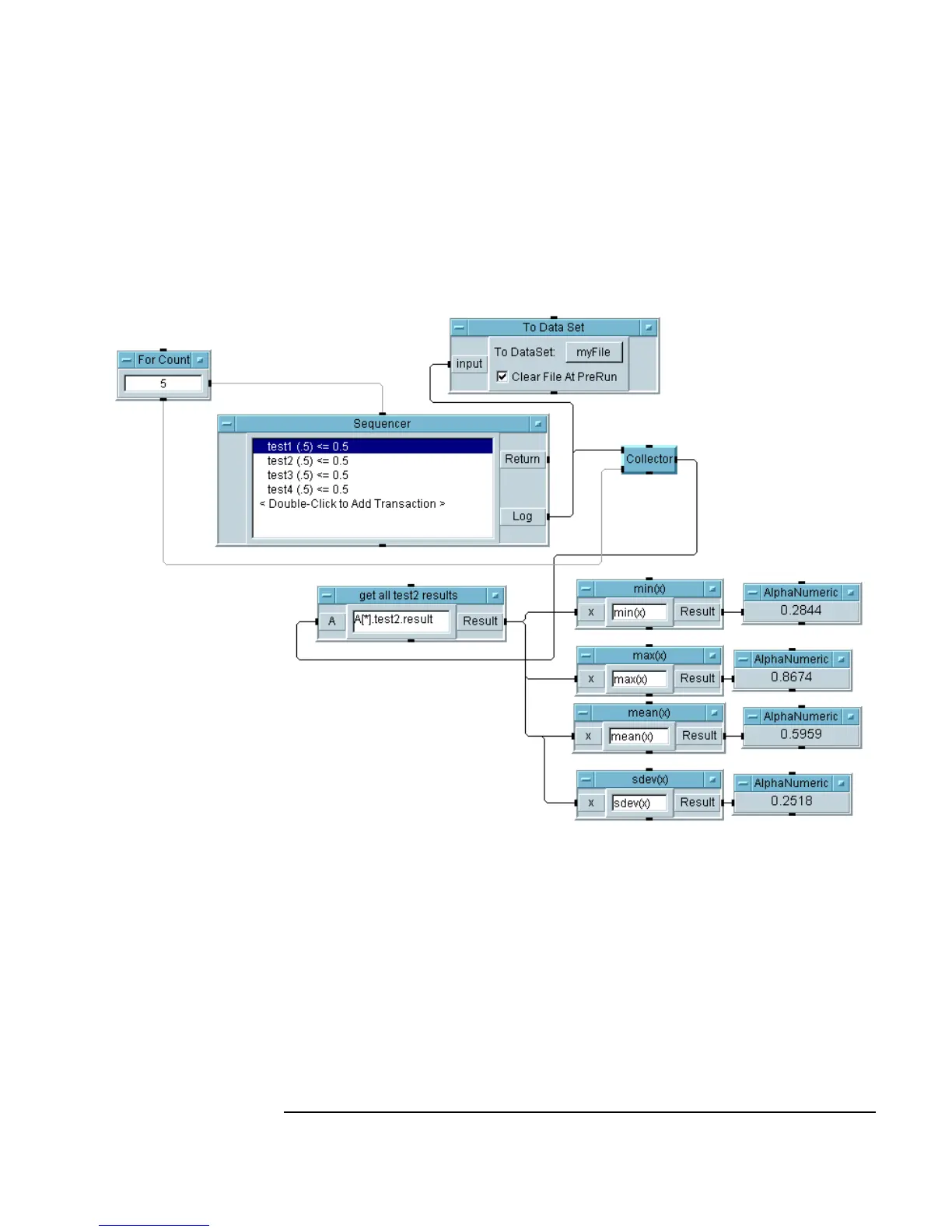

Figure A-33. Using the Test Sequencer, Step 3
Key Points
n The Data Format for Several Runs of the Sequencer (First Thread):
When the
Sequencer executes once, it outputs a Record of
Records
. The first record has field names that match the test names,
then each field holds a record containing the different pieces of data for
that particular test. When the
Sequencer runs several times, each
Record of Records can be added to an array, which can then be
investigated. If you use the <record>[*].<record>.<field> format in the
To Next Page
