Chapter 11 433
Optimizing Agilent VEE Programs
Agilent VEE Execution Modes

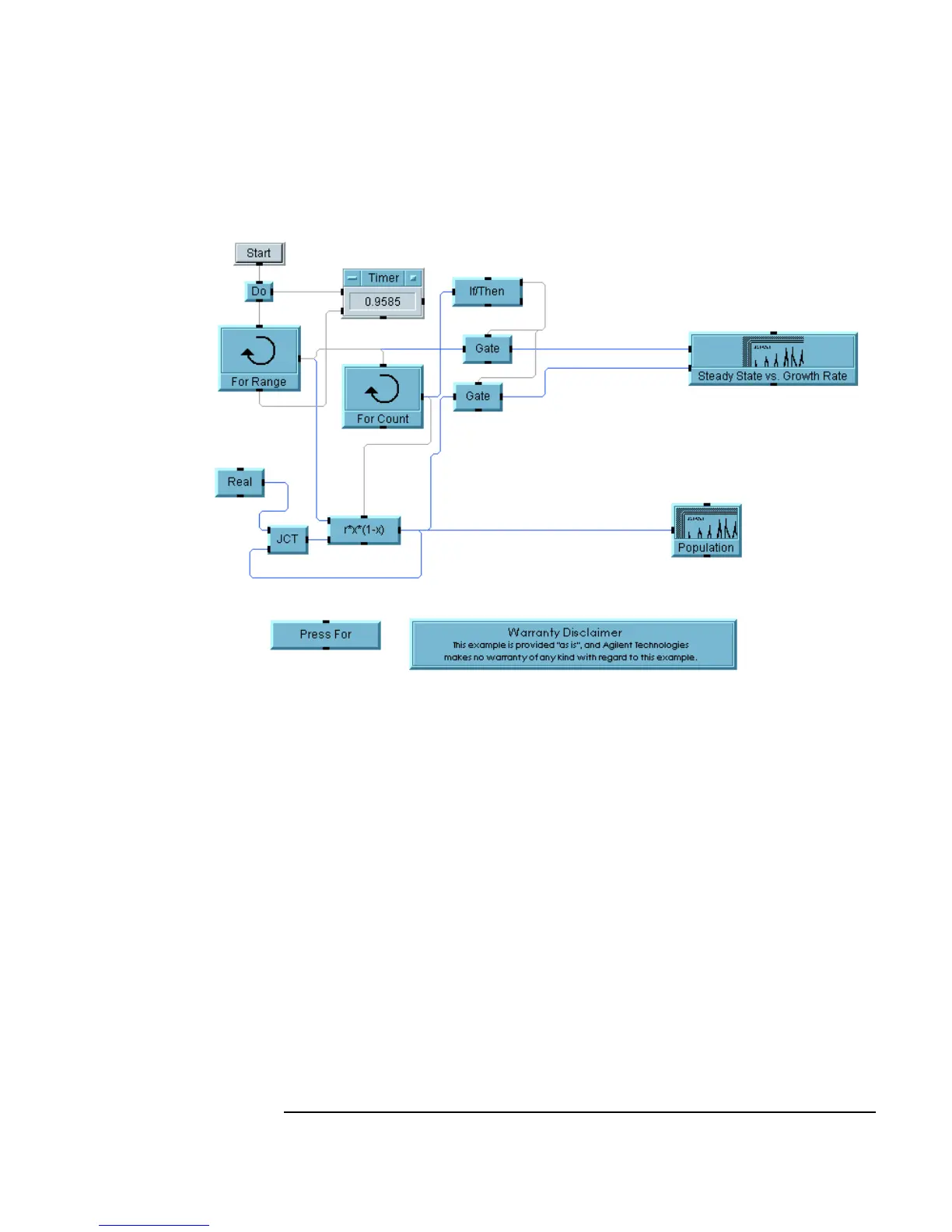

Figure 11-16. Chaos.vee in VEE 4 or Higher Mode with Debugging
Disabled
In Figure 11-17 and Figure 11-18, the VEE speed improvements use the
compiler on areas of programs involving iterative scalar math routines. The
example calculates the square root of a scalar value. (The result is not kept.)
By using the compiler, the speed is approximately 107 times faster than
using the VEE 3 execution mode.
