496 Appendix A
Additional Lab Exercises
Agilent VEE UserFunctions
Solution—Using UserFunctions, Step 4

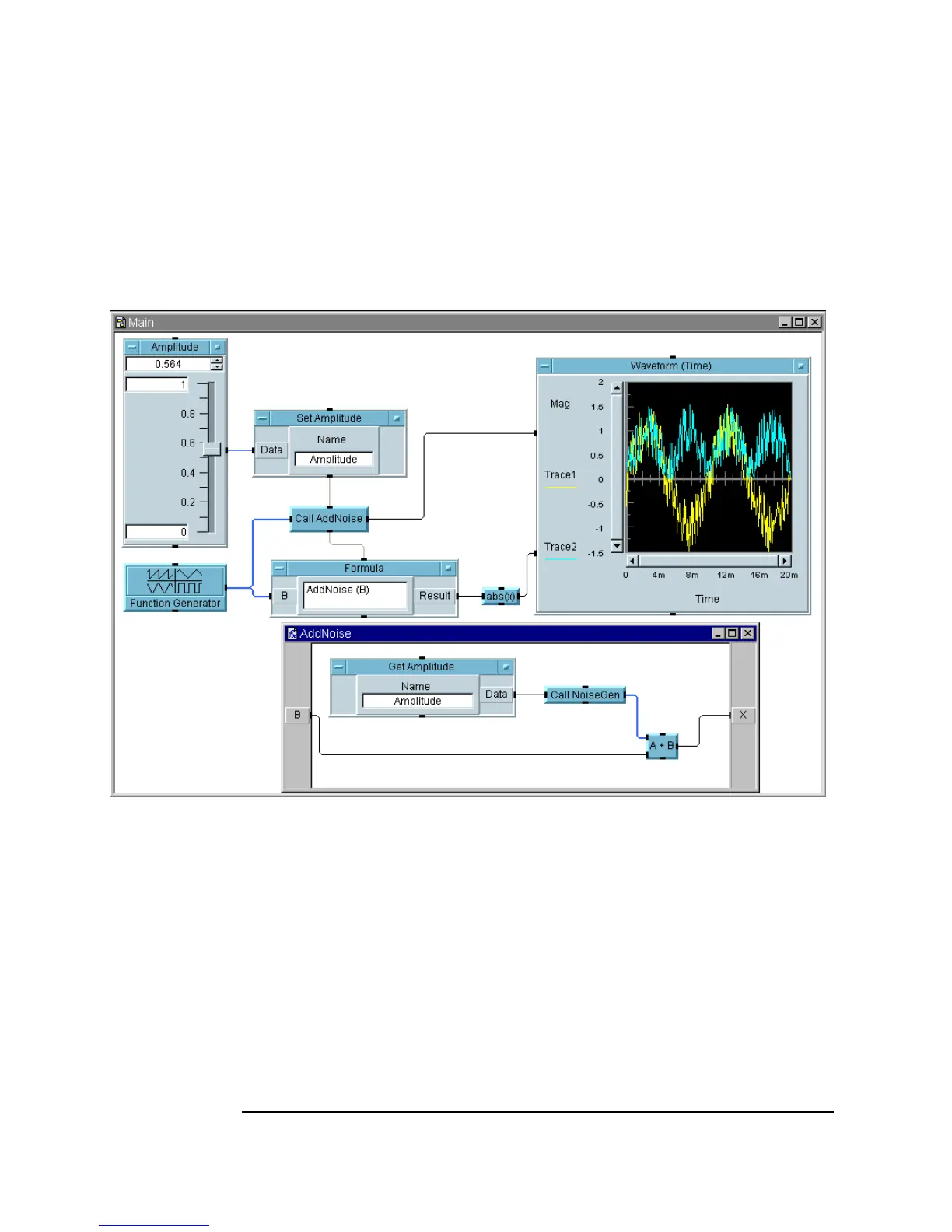

Figure A-19 shows a solution for step 4.
Figure A-19. User Functions, Step 4
Hint: Notice the Call AddNoise and Formula objects use the global
Amplitude, so both of the objects need to run after the Set Amplitude
object executes. Connecting the Sequence pins from
Set Amplitude to
Call AddNoise, and Call AddNoise to Formula ensure the objects
execute in the required order.
